Industrial Dual Shaft Waste Shredder Heavy Duty MSW Processing Machine With Hardox Blades 20-30TPH

The Joful T-Series Dual Shaft Industrial Waste Shredder is purpose-built for large-scale municipal solid waste (MSW) processing facilities that demand uncompromising reliability under continuous 24/7 operation. Unlike conventional shredders that choke on the unpredictable composition of urban waste streams, this machine combines twin counter-rotating shafts independently driven by high-torque geared motors to deliver consistent shredding performance across mixed materials ranging from plastic packaging and textiles to wood debris, rubber, and light metal scrap. Each shredder is custom-configured to the specific throughput requirements of the facility, with standard configurations supporting 20 to 30 tons per hour processing capacity. The industrial-grade structural frame fabricated from reinforced thick steel plate with stress-relieved welds absorbs the punishing impact loads inherent to MSW processing without deformation or fatigue.

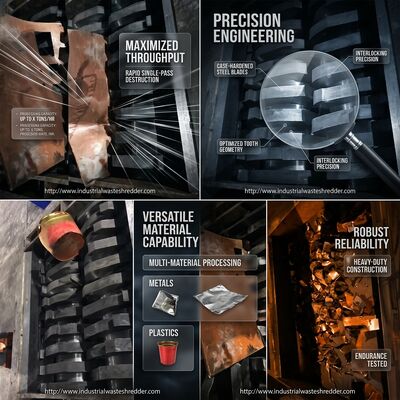

• Hardox Alloy Blades for Extended Service Life: The cutting rotors feature knives manufactured from Hardox 500 wear-resistant steel, providing three to five times longer service intervals compared to conventional D2 or Cr12MoV blades when processing abrasive MSW materials. Each blade can be rotated and re-sharpened multiple times before replacement, dramatically reducing consumable costs over the machine lifespan.
• Independent Dual Motor Drive System: Each shaft is powered by its own dedicated high-torque gearmotor with 2 x 55 kW standard and up to 2 x 90 kW for heavy-duty configurations, eliminating the single-point-of-failure risk inherent in single-motor designs. If one shaft encounters an unshreddable object, the opposite shaft continues processing while the affected motor initiates the auto-reverse protection sequence.
• Intelligent PLC Auto-Reverse Anti-Jam Protection: The Siemens S7-1200 PLC control system continuously monitors motor current draw on both shafts. When current exceeds preset thresholds indicating a jam condition, the affected shaft automatically reverses direction to clear the obstruction then resumes forward rotation. This cycle repeats up to three times before alerting the operator, virtually eliminating manual intervention for routine jams that plague single-direction machines.
• Hydraulic Assisted Ram Feeding System: A hydraulically driven pusher ram with adjustable stroke length and pressure settings ensures consistent material feed into the cutting chamber. The force-feed action prevents material bridging at the hopper throat, a common bottleneck in high-volume MSW operations that can reduce effective throughput by thirty to forty percent in gravity-fed machines when processing lightweight bulky waste.
• Hexagonal Main Rotor Shaft Design: Both cutting rotors utilize a forged hexagonal shaft profile with precision-machined blade mounting surfaces. This geometry provides superior torque transmission compared to round shafts with keyway connections, particularly critical during high-load startup conditions when inertia demands can peak at two to three times normal operating torque values.
• Modular Blade Configuration System: Blade thickness at 40, 60, or 80 mm, claw count per blade, and claw profile are all configurable based on the target waste stream characteristics. Thicker blades with aggressive claw geometry handle bulky items like furniture and mattresses, while thinner multi-claw configurations excel at processing bagged household waste and mixed recyclables with precision.
• Integrated Bearing Temperature Monitoring: PT100 temperature sensors embedded in all four main rotor bearings provide real-time thermal data to the PLC system. Automatic shutdown protocols activate if any bearing exceeds eighty-five degrees Celsius, preventing catastrophic bearing failure that could result in weeks of downtime and significant repair costs extending well into five-figure territory.

The T-Series Dual Shaft Shredder is the primary size-reduction solution for municipal solid waste processing plants, waste transfer stations, and material recovery facilities handling diverse incoming waste streams. It excels at the initial volume reduction of mixed household and commercial waste prior to mechanical sorting, ensuring downstream equipment such as magnetic separators, eddy current separators, and optical sorters receive consistently sized feedstock for maximum separation efficiency. The machine is equally effective in waste-to-energy front-end processing, where it shreds MSW to a uniform particle size for optimized combustion in incinerators and gasification systems that demand consistent fuel characteristics. Beyond municipal applications, the T-Series reliably processes industrial waste from manufacturing plants, construction and demolition debris including wood, drywall, and light concrete, as well as bulky waste items such as furniture, mattresses, and carpet rolls that would overwhelm smaller shredders. The robust rotor design readily accommodates incidental tramp metal such as hinges, screws, and brackets commonly encountered in mixed waste streams without requiring expensive pre-sorting labor at the receiving end of your facility.

Every Joful T-Series shredder undergoes a comprehensive pre-shipment inspection protocol including full-load test runs with actual waste materials, vibration spectrum analysis on all bearing housings, and complete PLC system functional verification against the factory acceptance test checklist. The machine is disassembled into logical major sub-assemblies for safe transport, with each component individually wrapped in anti-corrosion VCI film and cushioned with high-density EPE foam before being secured in fumigation-certified export-grade plywood cases with bolt-through steel angle reinforcement. All hydraulic lines are purged, capped with color-coded dust plugs, and labeled with alphanumeric tags matching the assembly drawings for straightforward on-site reconnection. Each shipment includes a complete documentation package containing assembly drawings with fastener torque specifications, electrical schematics with wire numbering cross-reference, PLC program backup on industrial-grade USB drive, spare parts catalog with full part numbers, and a detailed step-by-step commissioning checklist. Our standard warranty covers all manufacturing defects for twelve months from the date of delivery receipt, with lifetime remote technical support available via video call, email correspondence, or telephone.
