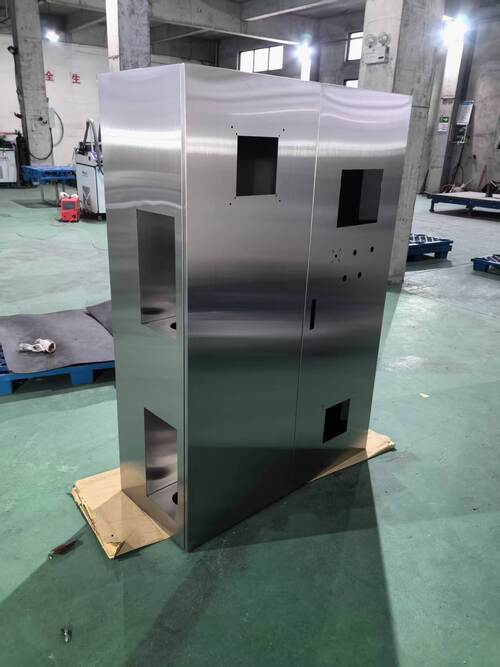

Project snapshot: a UK manufacturer of recycling and material sorting equipment needed a stainless steel fabrication partner for 316L hoppers, guards and control enclosures. Over 14 months the project moved from a single trial order to a quarterly release schedule, with lead time reduced by 35% and first-pass yield raised from 88% to 98.5%. Client Background ItemDetail IndustryRecycling and material sorting equipment LocationUnited Kingdom Company sizeMid-sized OEM, 120 to 150 staff Parts in scope316L hoppers, side guards, control cabinets, mounting frames Annual volumeAround 2400 fabricated assemblies Service usedOEM sheet metal fabrication, welding, powder coating, kitting The Problem The client had been buying fabricated 316L parts from a local UK subcontractor. Three issues kept repeating. First, delivery slipped: quoted at 8 weeks, actual delivery ran to 12 weeks in peak season, which pushed machine assembly dates and forced expensive overtime. Second, weld quality was inconsistent. Hoppers that must hold liquid were failing leak tests on roughly one unit in eight, and rework had to be done after powder coating, which meant stripping, re-welding and recoating. Third, dimensional drift appeared on multi-part assemblies: brackets that passed inspection individually would not line up on the assembly line, because each part had been made from a different drawing revision. Cost per part looked acceptable on paper, but the true cost including rework, line stoppage and air freight for urgent replacement parts was far higher than the purchase price suggested. What We Changed Drawing and revision control: one master drawing set was locked at project start, and every batch was produced against the same revision with a revision stamp on each part Welding fixtures: jigs were built for the three highest-volume weldments so hoop distortion stayed within 1.5mm and leak tests became repeatable First article approval: a full first article with CMM dimensional report and weld photographs was approved before any batch production Material traceability: 316L mill certificates were filed per heat number and referenced on the packing list Kitting: parts for one machine were packed and labelled as a kit rather than as bulk quantities, cutting line-side sorting time Surface treatment: powder coating applied after all welding and leak testing, with 480-hour salt spray verification on test coupons Execution Timeline Week 1: drawing review, DFM report issued with 11 cost and quality suggestions Week 2: quotation approved, NDA signed, welding jigs designed Week 3 to 4: first articles produced and shipped by air for approval Week 5: client engineering sign-off, minor bend radius change incorporated Week 6 onwards: batch production in 3-week cycles, sea freight with 2 weeks buffer stock at client site Results After 14 Months MetricBeforeAfter Average lead time12 weeks7.5 weeks First-pass yield88%98.5% Leak test failures per batch12 unitsFewer than 1 unit Rework and recoating costBaselineDown 42% Emergency air freight events5 per year0 in 14 months Assembly fit-up complaintsRecurringNone since batch 2 Client Feedback "The difference is predictability. We stopped building buffer stock to protect our assembly line, because the parts arrive when promised and they fit the first time," said the client's purchasing manager. "The DFM notes in the first quote paid for themselves in the first three batches." Why The Project Worked Three things made the difference: fixtures instead of skill-dependent welding, one locked drawing revision across every batch, and inspection data shipped with the parts so the client could verify rather than guess, and a single English speaking engineer accountable for the account. Similar Project? We fabricate 304 and 316L parts for recycling equipment, food machinery, medical housings and water treatment systems. Send your drawing with material, thickness, finish and annual quantity, and our engineering team will reply with a costed quotation and DFM notes within 12 working hours.

Our Solutions | 我们的解决方案 ✨ We provide end-to-end stainless steel sheet metal fabrication services to help customers solve challenges in precision, quality, and delivery. ✅ Key Solutions | 核心解决方案 Custom Fabrication | 定制加工Tailor-made stainless steel sheet metal parts based on drawings or samples.根据图纸或样品定制不锈钢钣金零部件. Precision & Quality Control | 精度与质量管控Strict tolerance management and 100% inspection before shipment.严格公差管理,出货前100%检验. Flexible Production | 灵活生产From prototypes to large-scale orders, we adapt to your needs.从打样,小批量到大批量生产均可支持. Fast Lead Time | 快速交付Rapid prototyping and efficient production to meet urgent schedules.快速打样,高效生产,满足紧急交期. One-Stop Service | 一站式服务Design support, laser cutting, bending, welding, surface finishing, and assembly.提供设计支持,激光切割,折弯,焊接,表面处理到总装配的全流程服务.

Old clients bought machine for RDF crushing,contact us for more information

We are supplier of Qu**** Paper Corporation

We are supplier of ***PLAST RECICLADORA ** PLASTICOS Y DESPERDICIOS INDUSTRIALES SA DE CV

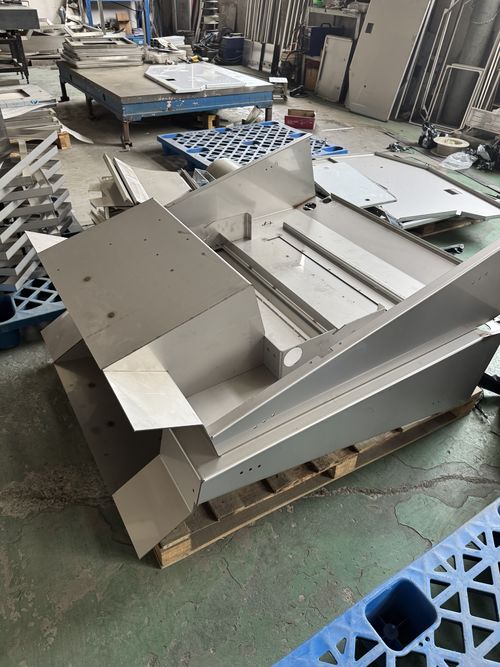

As a professional stainless steel sheet metal fabrication manufacturer, we provide end-to-end processing services for customized equipment enclosures. From raw sheet material to a fully assembled and finished product, each step is completed with precision to meet international quality standards. Below is the typical workflow for producing stainless steel equipment housings: 1. Material Selection & Cutting We begin by selecting high-grade stainless steel sheets (such as SS304 or SS316). Based on the customer’s drawings, materials are processed using laser cutting, CNC shearing, or punching to achieve accurate dimensions and clean edges. 2. Bending & Forming Cut parts are shaped using CNC press brakes to ensure precise bending angles and consistent tolerance control. Complex forms can be achieved through multi-step bending or rolling processes. 3. CNC Machining & Secondary Processing For components requiring higher accuracy or special features, we perform CNC milling, tapping, countersinking, and drilling to meet detailed functional requirements. 4. Welding & Assembly We use TIG welding, MIG welding, spot welding, or stud welding to join parts according to structural needs. After welding, components are assembled to verify fit and stability. 5. Surface Treatment To enhance appearance and durability, we offer multiple finishing options, including: Grinding and polishing Brushing Sandblasting Passivation or anti-fingerprint coating These treatments improve corrosion resistance and achieve the required visual effect. 6. Quality Inspection Each part undergoes strict dimensional inspection, weld quality checks, and functional tests. Our quality team ensures all components meet customer specifications and international standards before packaging. 7. Final Packaging & Shipment Finished enclosures are cleaned, protected with film/foam, and securely packed for export to ensure safe delivery to global customers.
