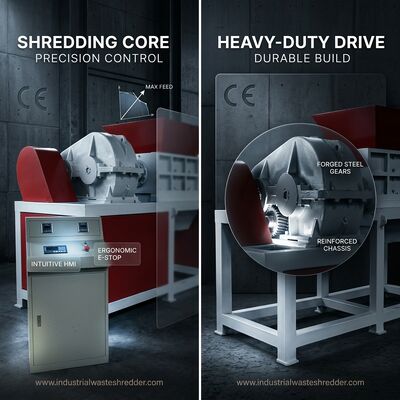

Single Shaft Industrial Waste Shredder Compact Multi-Material Recycling Machine With Quick-Change Screen System

The Joful S-Series Single Shaft Industrial Waste Shredder is engineered specifically for medium-scale recycling operations and in-house factory waste processing lines where floor space and capital budgets are constrained but performance expectations remain high. This machine delivers reliable multi-material shredding in a compact footprint, processing plastics, textiles, paper, wood scrap, rubber, and light packaging waste through a single high-torque rotor working against a hydraulically actuated pusher ram. The defining advantage of the S-Series over conventional fixed-configuration shredders is its patented quick-change screen system, which allows the operator to swap output mesh screens in under fifteen minutes without specialized tools, enabling the same machine to produce coarse 100 mm rough shred one shift and fine 10 mm granulate the next. This operational flexibility eliminates the need for multiple dedicated machines when processing diverse waste streams, making the S-Series the most cost-effective entry point into professional-grade industrial shredding for growing recycling businesses and manufacturing plants looking to reduce their waste disposal costs through on-site volume reduction.

• Patented Quick-Change Screen System: The defining innovation of the S-Series is the tool-less screen replacement mechanism located beneath the rotor chamber. Interchangeable mesh screens ranging from 10 mm to 100 mm aperture sizes can be swapped in under fifteen minutes by a single operator, enabling rapid transitions between coarse pre-shredding and fine granulating without purchasing a second machine. Screens are laser-cut from hardened steel plate with precisely calibrated opening ratios to balance throughput against particle size consistency for each target application.
• Energy-Efficient Single Motor Drive: A single high-efficiency IE3-class geared motor ranging from 22 kW to 75 kW depending on the selected chamber size delivers all rotor power through a direct-coupled gear reducer with hardened helical gears. The single-motor architecture consumes approximately forty percent less energy per ton processed compared to equivalent-capacity dual shaft machines, directly reducing your facility operating costs while maintaining throughput rates of 500 to 3,000 kilograms per hour depending on material type and screen size.
• Hydraulic Pusher Ram with Adjustable Force Control: An integrated hydraulic ram assembly maintains consistent material pressure against the rotor using a proportional pressure control valve with operator-adjustable settings from the HMI panel. The ram automatically retracts when motor current approaches overload threshold then re-engages at reduced pressure, creating a self-regulating feed cycle that prevents both under-feeding inefficiency and over-feeding jams without constant operator supervision.
• Rotor Knife Cascade Arrangement: The S-Series rotor features a helical cascade arrangement of hardened DC53 steel cutting knives positioned to create a continuous shearing action along the full length of the cutting chamber. This staggered knife pattern distributes the cutting load evenly across the rotor, reducing peak torque spikes by up to thirty-five percent compared to inline knife arrangements and extending gearbox service life significantly over years of continuous operation.
• Quick-Open Hydraulic Screen Cradle: Beyond just screen changes, the entire screen cradle assembly is mounted on hydraulic lift cylinders that lower the cradle to floor level for inspection, cleaning, and knife rotation. What would be a two-person multi-hour maintenance task on competing machines becomes a single-operator procedure completed in approximately forty-five minutes, dramatically reducing maintenance-related downtime and labor costs throughout the machine ownership lifecycle.
• Compact Modular Frame Design: All major S-Series sub-assemblies including the motor-reducer unit, rotor chamber, hydraulic power pack, and electrical cabinet are mounted on a single integrated steel base frame with forklift pockets and crane lifting eyes. The complete machine ships as a fully assembled unit requiring only power connection and hydraulic fluid fill on-site, eliminating the multi-day mechanical assembly typically required for larger dual shaft systems while occupying up to fifty percent less floor space.
• PLC Control with Production Data Logging: A Siemens S7-1200 PLC with seven-inch color touchscreen provides intuitive machine control plus integrated production data logging. The system records throughput hours, motor energy consumption, and maintenance interval tracking with export functionality via USB for integration into your facility management reporting. Alarm history with timestamp logging enables rapid troubleshooting by your maintenance team or remote Joful support engineers.

The S-Series Single Shaft Shredder is the ideal entry point for medium-scale recycling companies processing post-consumer and post-industrial plastic waste, including HDPE containers, PP buckets, LDPE film, PET bottles, and woven polypropylene sacks. Its quick-change screen system allows a single machine to handle the diverse output requirements of different downstream buyers, from coarse shred for washing line infeed to fine granulate for direct sale to pelletizing plants. For manufacturing facilities establishing in-house waste processing, the S-Series shreds production scrap such as plastic purgings, rejected molded parts, edge trim from thermoforming lines, and defective products before reintroducing the regrind material back into the production process, achieving payback periods typically under eighteen months through reduced waste haulage fees and raw material savings. The machine also serves textile recycling operations shredding fabric offcuts, end-of-roll remnants, and used garments into fiber fluff for nonwoven manufacturing or insulation material production. Wood processing applications include pallet scrap, MDF offcuts, and clean construction timber reduced to biomass fuel chip specifications. With the larger 100 mm screen installed, the S-Series pre-shreds bulky items ahead of secondary granulators in multi-stage processing lines, functioning as both primary shredder and rough sizing machine within a single equipment investment.

Each Joful S-Series shredder completes a factory acceptance test including sustained full-load operation with customer-specified test materials, rotor balance verification to ISO 1940 G6.3 standards, and complete functional checkout of all hydraulic, electrical, and PLC subsystems against a documented inspection checklist. The machine ships fully assembled on its integrated base frame, wrapped in multi-layer VCI anti-corrosion film and weather-resistant polyethylene shrouding, then secured inside a fumigation-certified export plywood case with internal steel bracing and bolt-down hold-down brackets at all mounting points. All fluid ports are sealed with threaded plugs and the hydraulic reservoir is nitrogen-blanketed for ocean freight protection. The accompanying documentation package includes a complete set of assembly and installation drawings, electrical wiring schematics with terminal block identification, PLC program backup on USB storage, a recommended spare parts list with Joful part numbers and reorder lead times, and an operator training manual with photographic procedures for all routine maintenance tasks. Standard warranty coverage extends twelve months from delivery against manufacturing defects in materials and workmanship, with free replacement of defective components shipped by air freight to minimize customer downtime. Lifetime remote technical support is provided at no charge via video call diagnosis, email correspondence, and telephone consultation. On-site commissioning services including initial setup, operator training, and first-month production support are available globally at published daily service rates, with all travel and accommodation costs quoted transparently in advance.
