Textile Carpet Scraps Crusher Machine For Vinyl Scraps Easy Feeding Synthetic Leather Scraps Shredder

Detail Information

Place of Origin:

Certification:

CE ISO9001

Packaging Details:

export wooden box packing ,epe foam&pvc films warpping

Supply Ability:

25-30 sets per month

Highlight:

Product Description

If you are looking for a textile scraps shredder machine with high effciency and lower investment, congratulations on finding us !

The rotary cutter design is specially for cutting & crushing soft materials .
It is cutting like high speed rotating scissors,so very energy save and high working efficiency!

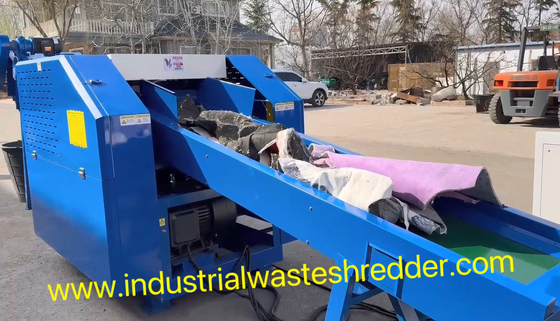

The feeding struture design makes the machine very good at to handle long materials and the shredding chamber won't be overload. Workers can easily control the feeding volume and cutter won't be entangled.

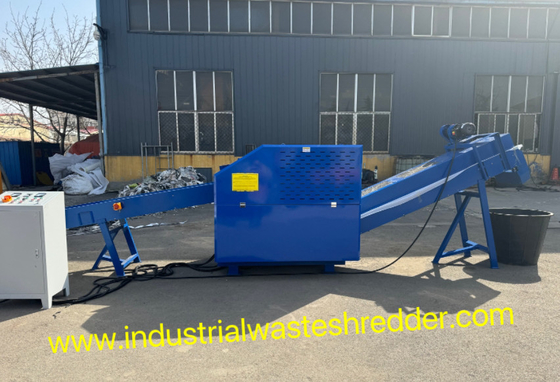

Textile Carpet Scraps Crusher Machine For Vinyl Scraps Easy Feeding Synthetic Leather Scraps Shredder 0

There're different models for meeting different capacities,you can choose base on your demand.

If you just need to shred materials into smaller pieces will be ok ,then choose the machine without screen.
If you have discharge size request after cutting, then you choose the machine with screen

Main Technical data	800F	1200F	1600F	2400F
Blade length	400mm	600mm	800mm	1200mm
Rotary blade qty	6	6	6	6
Cutting motor	7.5KW	18.5KW	22KW	22KW+22KW
Input & output conveyor size	330*1400	520*3000	720*3000	1100*3000
Sieve mesh adjustable range	3mm-50mm	3mm-120mm	3mm-140mm	3mm-140mm
Production output fabric / 120mm sieve mesh	300-500kg/ hour base on 50mm mesh	750-1100kg/hr	900-1500kg /hr	1200-1800kg/hr
Production output Plastic films / 120mm sieve mesh	200-300kg / hour base on 50mm mesh	550-750kg/hr	700-1000kg/hr	1000-1300kg/hr

Main Technical data	800C	1200B	1600B	2400B
Blade length	400mm	600mm	800mm	1200mm
Rotary blade qty	4	4	4	4
Cutting motor	7.5KW	18.5KW	22KW	22KW+22KW
Input & output conveyor size	330*1400	520*3000	720*3000	1100*3000
Sieve mesh	No mesh structure	No mesh structure	No mesh structure	No mesh structure
Production output	* Output is much more higher ( than the machine with sieve mesh ) * Discharge are strips ( instead of the flakes from the machine with sieve mesh )

The input conveyor is controlled via inverter motor, so the feeding speed is adjustable,you can set different feeding speed base on different materials .
One machine can equipped with different sizes screen, you can exchange the screen base on your production demand.

We offer below customized service
