Twisted Rotary Blades Plastic Waste Shredding Machine With Sharpener

Place of Origin China(Mainland)
Brand Name JOFUL
Certification CE
Model Number JF 500/800/1200/1600/2400/3200
Minimum Order Quantity 1 set
Price Depending on your capacity and discharge size request
Packaging Details Wooden box package protect
Delivery Time 5-40 working days after deposit arriived
Payment Terms T/T, L/C
Supply Ability Annual around 700 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Plastic Bopp PP/PE/PVC Films Cutting Machine Blades Design Twisted Rotary Blades
Application Bopp And Other Soft Type Materials Working Voltage Customized, 220/380/415/440V
Motor Power 7-200HP Blade Length 400/600/800/1200mm
Machine Maintenance With Automatic Sharpener Machine Color Blue, Orange, Yellow, Red, Customized
High Light

1200mm Blade Plastic Waste Shredding Machine

,

Twisted Rotary Blades Plastic Crusher Machine

,

Rotary Blades Plastic Waste Shredding

Leave a Message
Product Description

Plastic Bopp Waste Shrdder LD/HDPE Bopp Films Crusher Rotary Blades With Sharpener

Waste Bopp Cutting Machine Plastic Paper Films Crusher HDPE/LDPE/PP/PE Shredder Mini Discharge Size To 2mm



Widely Application & High Efficiency

Widely Application

The Joful J series cutting machine is designed especially for soft type materials recycling cutting, and we already apply design patent for this, we are the only manufacture in China supply such design machine



it can be used for almost all soft type materials waste, such as below

Bags/plastic films/strips Jumbo bags / PP bags / woven & non-woven bags / plastic bags (PP PE PVC ect.. as long as they are soft bags), plastic films
Textile scraps Quilting edges ,threads, yarns, Clothes (Underwear scrap,jeans,towel,cap scraps,non-woven fabrics,cotton fabrics), Shoes Scraps etc
Fibers Glass fiber, fiber yarn, Coconut fiber, Polypropylene fiber ,polyester fiber, Silk fiber, etc
Foams Sponge/mattress scraps /flexible PU foam / EPS foam / XPS foam /Rock wool foam / glass wool foam / EPE foam / Cotton , silk cotton etc
Others Leather /Carpet / Papers / books /cardboard / plant straw / fish net / ropes etc



High Efficiency

Our cutting machine working principle is to cut the materials with its sharp blades, like a scissors, adopt rotating twisted the knives, native to the abolition of the traditional reciprocating straight knife board,the application of international leading oblique knob scroll meet the shear design of point moving knife and fixed knife,continuous high-speed shear



Take model 2400F for example, the blades length 1200mm, 8 pieces rotary blades, 2 pieces stationary blades, each blades rotating means cutting 16 times, the rotary blades is around 300 round per minute, totally means around 4800 times cutting (see blades design samples below)

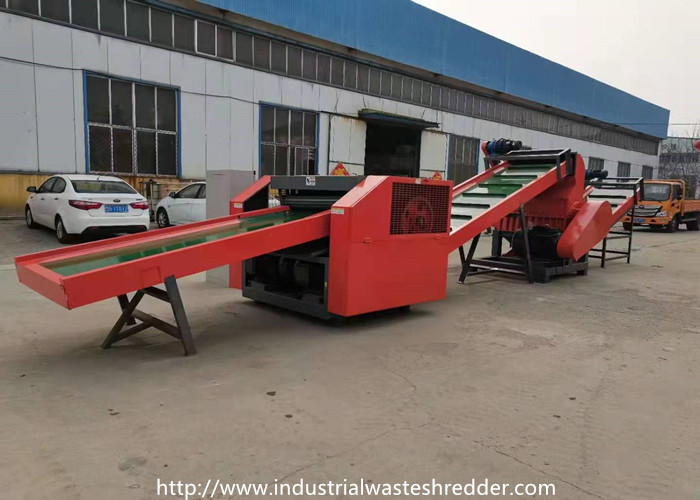

Twisted Rotary Blades Plastic Waste Shredding Machine With Sharpener 0



Description About The Plastic Bopp Cutting Machine

Main Datas

Factory Scale 50-60 person
RD Team 5-10 people
QC Team 5 people
cutting motor 8P motor, 5.5/7.5/15/18.5/22/44/66KW
transport motor 4P Inverter motor, adjustable speed
blades lifespan generally 12-24 months
blades design rotary twisted knife
working voltage 220/380/415/440V, customizable
power distribution cabinet independent distribution cabinet
Input/output belt width 330/520/720/1200mm
input/output belt length 1400/3000/4000mm, can be customizable
moving knife 4/6/8 pieces knife
fix knife 2 pieces knife
blades materials alloy tool steel
machine materials carbon steel
cutting size adjustable, 2mm to tens centimeters
output hundreds to 8,000KG per hour



Quick Details

Machine Price

Please let we know what materials cutting, and capacity, discharge size request

then we can confirm which model you need, and quote you price



Installation

a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
b. If necessary we also support abroad installation



Guarantee

Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors, beyond the guarantee period the broken parts dispatched are charged at cost price





Maintenance & Safety Tips

Maintenance Tips

* Please sharpening the blades regularly according to your suggestion

* Please put the machine on an open flat ground, avoid tilt

* Running the empty machine for 30 minute after install, check if the machine running ok

* Avoid metal materials

* Do not try to repair the machine yourself, if any problem, please contact first



Safety Operate Tips

* When feeding the machine, ,Do not reach hands inside

* During the machine is operating, do not reach out to pull out the material at the discharge port!

* Please make sure cut off the power when you check and maintenance the machine



Blades Sharpening Device Samples

Twisted Rotary Blades Plastic Waste Shredding Machine With Sharpener 1



Wooden Box Package Samples

Twisted Rotary Blades Plastic Waste Shredding Machine With Sharpener 2



Plastic Bopp Cutting Samples (Customizable)

Twisted Rotary Blades Plastic Waste Shredding Machine With Sharpener 3
