Rotary Blades 66KW Plastic Waste Shredding Machine

Rotary Blades 66KW Plastic Waste Shredding Machine

Brand Name: Joful
Model Number: JF 500/800/1200/1600/2400/3200
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: Monthly 60 sets
Detail Information
Place of Origin:
China (Mainland)
Certification:
CE/UL
Product Name:
Plastic Fiber Cutting Machine Twisted Rotary Blades
Machine Condition:
New
Supplier:
Factory
QC:
Fully Inspection And Test
RD:
Customizable Available
Guarantee Period:
12 Months After Machine Install
Working Voltage:
120/220/380/440V, Customized
Cutting Motor:
8P Motor, Customized Power
Packaging Details:
Wooden box package protect for LCL, films/foam cover for FCL
Supply Ability:
Monthly 60 sets
Highlight:

66KW Plastic Waste Shredding Machine

,

1200mm Plastic Waste Shredding Machine

Product Description

Plastic Fiber Recycling Cutting Machine Like Scissors Twisted Blade Rotating Cutting Efficiency Large Capacity



Better Working Performance & Reliable Supplier

Better Working Performance

  • Joful J series cutting machine is designed especially for fiber, yarns and other almost all kinds soft materials recycling cutting, the working principle is like a scissors to cut the materials, compare with regular single/double/four shaft shredder, it's much power saving and high efficiency
  • Adopt with rotating twisted knife design, with application of international leading oblique knob scroll meet the shear design of point moving knife and fixed knife, continuous high-speed shear
  • The discharge port is design with removable sieve mesh, mesh size can be customized, beside, we can also add dusty removal device, opening to fiber device and sorting device according to client's demand
  • The machine is equipped with automatic blades sharpening device, sharpening the blades according to our suggestion will be ok, no need other special maintenance Rotary Blades 66KW Plastic Waste Shredding Machine 0



Reliable supplier

  • We are specially professional in cutting machine research and manufacture for more than 16 years
  • We have experienced RD team offer you customizable solution, sound QC system to guarantee the quality
  • We have more than 10 years well trained and skilled workers, ensure every working processing handled properly
  • We have more than 700 sets cutting machine export to all over the world, some clients became our sales agent after test our machine and service
  • We have stock samples machine ready for test, you can personally visit us/,send waste samples to us, or open video call with us to check and test the machine, release concerns Rotary Blades 66KW Plastic Waste Shredding Machine 1



Description About The Plastic Fiber Cutting Machine

Main Details

Factory Scale 50-60 person
RD Team  5-10 people
QC Team  5 people
cutting motor 8P motor, 5.5/7.5/15/18.5/22/44/66KW
transport motor 4P Inverter motor, adjustable speed
blades lifespan generally 12-24 months
blades design rotary twisted knife
working voltage 220/380/415/440V, customizable
power distribution cabinet independent distribution cabinet
Input/output belt width 330/520/720/1200mm
input/output belt length 1400/3000/4000mm, can be customizable
moving knife 4/6/8 pieces knife
fix knife 2 pieces knife
blades materials alloy tool steel
machine materials carbon steel
cutting size adjustable, 2mm to tens centimeters
output hundreds to 8,000KG per hour
machine color yellow, orange, red, blue, milk, customizable



Warm Tips & After Sales Installation and Support

Maintenance Tips

* Sharpening the blades according to our suggestion

* Avoid metal and other solid materials, that may hurt the blades

* Put the machine on a flat and open ground, avoid tilt

* Running the empty machine for 30 minutes after installation, to check if every parts running smooth

* Do not try to fix the machine yourself, if any problem happened, please contact us, we will solve your problem in the first time



Safety Operate Tips

* When feeding the machine, ,Do not reach hands inside!

* During the machine is operating, do not reach out to pull out the material at the discharge port!

* Please make sure cut off the power when you check and maintenance the machine!



Installation

Complete machine delivery, just need install the conveyor belt and connect the power cord will be ok, we offer you drawings, videos and manual to help you



After Sales Support

* 12 months after machine arrived
* Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors, Beyond the guarantee period the broken parts dispatched are charged at cost price





Fibers Cutting Samples Display (Customizable)

Rotary Blades 66KW Plastic Waste Shredding Machine 2

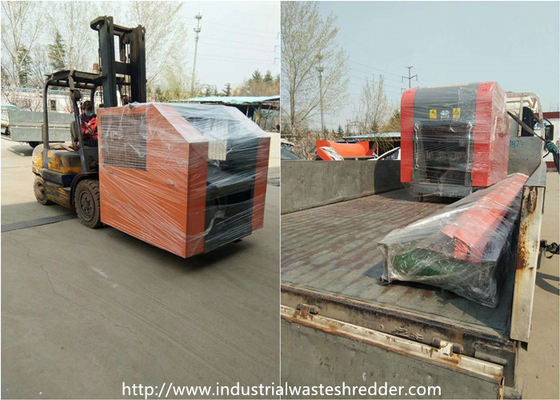

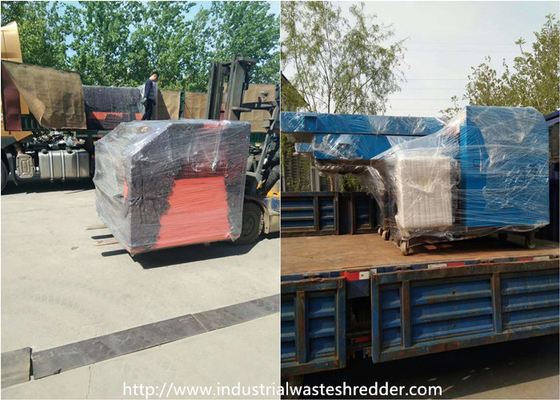

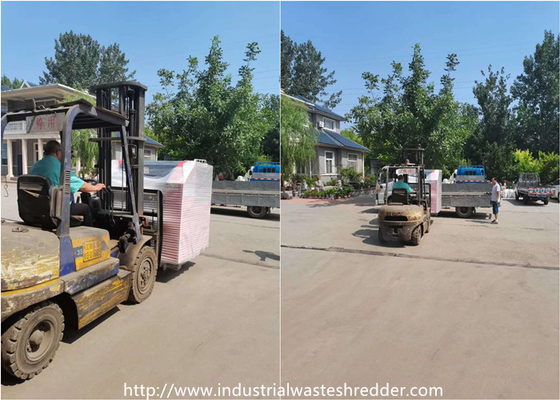

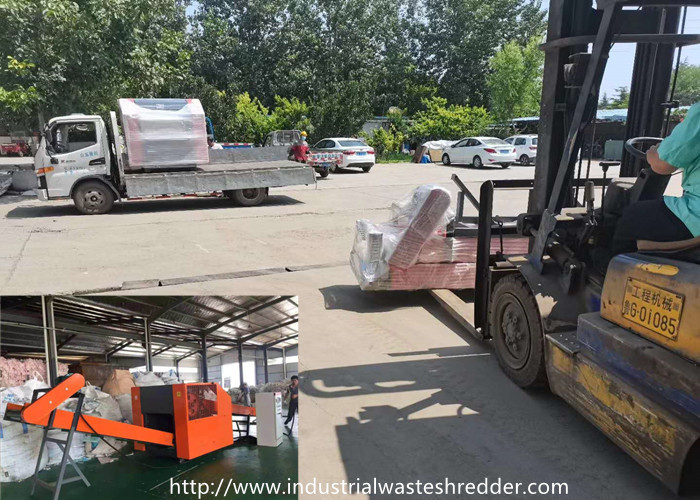

Wooden Box Delivery

Rotary Blades 66KW Plastic Waste Shredding Machine 3



If any interested, please feel free to contact us
