Non - Woven Textile Rag Cutting Machine Cloth Fabric Shredder Lower Power Consumption

Non - Woven Textile Rag Cutting Machine Cloth Fabric Shredder Lower Power Consumption

Brand Name: Joful
Model Number: J-1600F
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 60 sets
Detail Information
Place of Origin:
China(Mainland)
Certification:
CE/UL
Product Name:
Non-woven Textile Cutting Machine Cloth Fabric Waste Crusher Customized Solution Available
Capacity:
Hundreds To Tons, Depend On Cutting Size Request
Discharge Size:
Can Be Customized
Knife Materials:
Alloy Tool Steel
Machine Stand Material:
Carbon Steel
Working Voltage:
220/380/440V, 50/60Hz, Per Client Request
Machine Color:
Red/Blue/Green/Yellow/Grey/Orange, Or Per Client Request
Application:
All Kinds Of Soft Waste
Packaging Details:
PE films cover, Export wooden box package per your request
Supply Ability:
60 sets
Highlight:

waste yarn cutting machine

,

rag shredder

Product Description

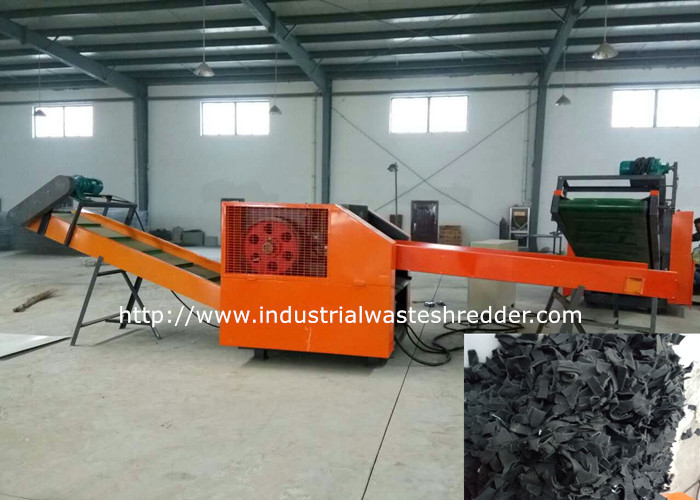

Non - woven Textile Rag Cutting Machine Cloth Fabric Shredder Lower Power Consumption



Waste Textile Recycling Cutting Machine Scrap Cloth Fabric Crusher New Design Special For All Soft Materials Scrap





Description of textile cloth cutting machine


Design Advantage

Joful "J" series cutting machine is design specially for all kinds of soft waste recycling crushing, different from regular single shaft/ double shaft shredder machine the adopt rotating twisted knives, international leading oblique knob scroll meet the shear design of point moving knife and fixed knife continuous high-speed shear, it will quickly shred waste materials just like a scissor, high working effency, low power consumption



With dismountable screen part, cutting output size is uniform, the screen hole size can be customized according to your discharge size, fully meet your final size request



Easy maintenance, supply with automatic blades sharpening device, only cost few minutes for sharpening, do not need tear down the blades





More Application


* Textile waste, such as quilting edges ,threads, yarns, Clothes (Underwear scrap, jeans, towel, cap scraps, non-woven fabrics,cotton fabrics), shoes Scraps etc.



* Fibers, such as glass fiber, fiber yarn, Coconut fiber, Polypropylene fiber, polyester fiber, Silk fiber etc


* Jumbo bags/Plastic films/PP bags/woven & non-woven bags/plastic bags (PP PE PVC ect.. as long as they are soft bags)



* Leather, Carpet, Papers, books, cardboard, Plant straw, Fish net, Ropes etc



* Foams such as: Sponge, mattress scraps, flexible PU foam, EPS foam, XPS foam, Rock wool foam, glass wool foam, EPE foam





Characteristic


* High cutting efficiency, large capacity

* Widely usage

* Lower price

* Lower power consume

* Uniform cutting size



Main Data


cutting motor 8P 15kw
transport motor 4P 2kw
pulley wheel of cutting motor Φ160

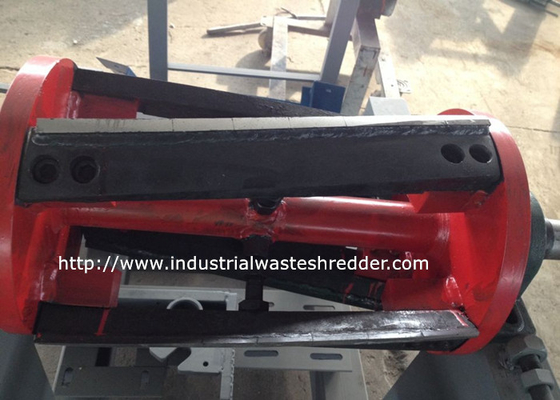

Moving knife wheel Φ400*600L
power distribution cabinet independent power distribution cabinet
Input belt 3000*520mm
output belt 3000*520mm

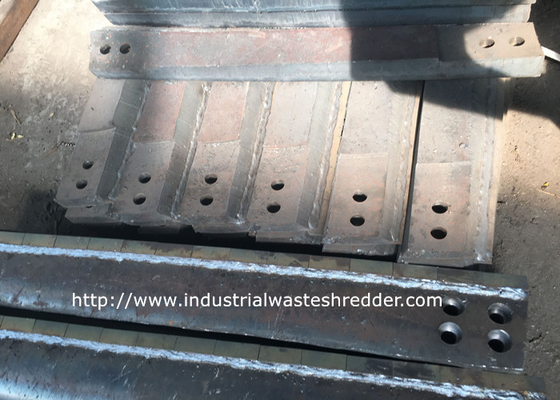

moving knife Alloy tool steel, 4/6/8 pieces available
fix knife Alloy tool steel, 2 pieces knife
main machine size 2100*1000*1100mm
cutting size Customized as client request
capacity  Hundreds KG to Tons (per different cutting size)
machine GW 2200KG





FAQ


Q: Which model machine is suitable for me

Tell us what materials need to cut, also with capacity and discharge size request, we will feedback with most suitable machine and details



Q: How can i do if the machine not works well as it usually do

If you have such problems, please contact us ASAP, do not try to repair it by yourself, or someone else except technical specialist. We will response within one hour if on working day, reply within 2-3 hours in non-working day. Or you can call us or find me on whatsApp for instant support.



Q: How to making cutting test before buy

We warmly welcome you visit our factory and make cutting test on our sample machine, or we try to arrange you test in our client's factory nearby you



Contact Us



Non-woven textile cloth cutting pieces sample display


Non - Woven Textile Rag Cutting Machine Cloth Fabric Shredder Lower Power Consumption 0

Non - Woven Textile Rag Cutting Machine Cloth Fabric Shredder Lower Power Consumption 1



Any interested? pls  do not hesitate to contact us
