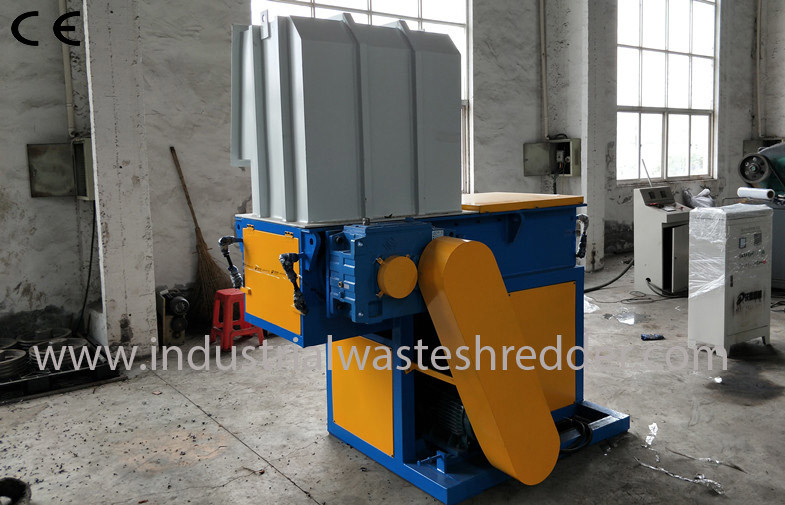

Single Shaft Plastic Lumps Shredder , Plastic Lump Crusher With PLC Control System

Place of Origin CN
Brand Name Joful
Certification CE
Model Number S-600/700/800/1000 / T-400/600/800/1000/1200/1500/2000 ..
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Film , EPE Foam , Export Wooden Box / or per clients request
Delivery Time 7-48 working days
Supply Ability 40 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Plastic Lump Shredder,Plastic Lump Crusher,Plastic Recycling Machines,scrap Lump Shredder Application Plastic,PP,PE,HDPE,PET Pipe,Thick Rubber ,Tube,drum,wood,E-waste, Baled Jumbo Bags
Blade Material Cr12 Mov/SKDII/D2/H13... Capacity Customizable
Motor Depends On Shred Demand Installation Offer Assembly Drawing/video ,support Abroad Installation
Feature 100% QC Inspection Before Shipment Shaft Single/double/four Shafts For Choosing
High Light

plastic waste shredding machine

,

plastic recycling shredder

Leave a Message
Product Description



Single Shaft Plastic Waste Shredder , Industrial Shredder For Scrap Plastic Lump,Die Material Shredder , Thick Rubber Shredder , HDPE/PE/PP/ABS Pipe Shredder



Description of Scrap plastic lump shredder


Joful S series is a type of solid shredder machine for general use, it can shred most materials effectively with small energy consumption, high output and easy move features. Users can choose the different models according to the material that need to shred and the capacity demand. This series solid waste shredders is generally used to shred hard material which are more difficult to break,like hard plastic, rubber, tires, nylon plastic, car bumpers, abandoned fishing nets, plastic pipe, fiber, paper bale, electrical components, cables, circuit boards, wood and so on.



Joful Single shaft plastic lump waste shredder consists of moving cutter and stationary knife work together to complete shredding demand. Cutter is consist by base rotor and quadrilateral shape moving knife blocks. Moving knife block has 4 cutting edges, they are replacing use. Moving knife blocks are arranged in multiple" V-Shape" rows along the base rotor and fixed via screws on the base rotor, rotating together with the base rotor, the two together we call it moving cutter. There are two groups of stationary knife, fixed in the rack. The material is pushed by the horizontal hydraulic cylinder to cutter direction. The speed is smooth and adjustable,propulsion is large and uniform .





Features of Waste Plastic lump Shredder


1. Single shaft shredder is strong and durable. Suitable for recycling a variety of bulk solid materials, materials that are hard to deal with, plastic containers and plastic barrels, plastic pads. Shredding particles according to different needs as small as 20mm. According to clients needs and provide all kinds of feed hopper. The device low-speed rotary knife, low noise, more energy saving.
2. The blade base and blade on the rotary roller can be dis-assembly .it is easy to clean and maintenance.
3. The rotary blade adopt the V design, It can decrease the noise and decrease energy consumption.

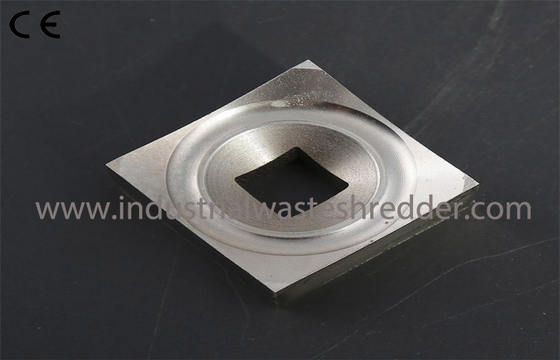

4. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continues use.
5. Single shaft shredder is strong and durable. Suitable for recycling a variety of bulk solid materials, materials that are hard to deal with, plastic containers and plastic barrels, plastic pads. Shredding particles according to different needs as small as 20mm. According to clients needs and provide all kinds of feed hopper. The device low-speed rotary knife, low noise, more energy saving.
6. Choose different knife sticks base on materials, we also design different cutter seaters base on different materials.like Welded type Moving knife seater, removable type moving knife seater and Integrated type moving knife seater

7. The material push feeding system is hydraulic ways , ,its running very stably

the machine is control by PLC system ,.the blade can rotated in opposite direction ,and also can close automatic if something unexpected happen , with very high safety service.







Scrap plastic lump shredding sample display photo


Single Shaft Plastic Lumps Shredder , Plastic Lump Crusher With PLC Control System 0









Quick details


1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.
