PLC Control Industrial Cardboard Shredding Machines , Cardboard Box Shredder Machine

Place of Origin CN
Brand Name Joful
Certification CE
Model Number S-600/700/800/1000 / T-400/600/800/1000/1200/1500/2000 ..
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Film , EPE Foam , Export Wooden Box / or per clients request
Delivery Time 7-48 working days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Scrap Carton Shredder , Waste Box Shredder , Scrap Cardboard Shredder ,shredding Waste Cardboard Box Application Plastic,wood,drum,carton,cardboard Core/rolls,papers,E Waste ...
Blade Material Cr12 Mov/SKDII/D2/H13... Capacity Customizable
Motor Depends On Shred Demand Installation Offer Assembly Drawing/video ,support Abroad Installation
Voltage 380 V/50 Hz /3 Phase , Customizable Shaft Single/double/four Shafts For Choosing
High Light

industrial paper shredder machine


plastic pipe shredder

Leave a Message
Product Description


Industrial Solid Waste Shredder , Waste Cardboard Box Shredder Machine , Shredding Machine for waste cardboard box



Description of Solid Waste Shredder , cardboard box shredder

1. This machine is suitable to shred many kind of material such as papers, books. cardboard, cartons ,big diameter plastic pipe and plastic sheet and wood and rubber tire and  plastic film and other hard plastic.

2. This machine with big feeding mouth, it can put the big product freely.

3. The rotary blade and cutting blade and blade edge with special design, it can get very high efficiency and high capacity

4. This machine is control by PLC system, the blade can rotated in opposite direction ,and also can close automatic if something unexpected happen , with very high safety service

5. This machine running slowly with low noise and low dusty

6. The blade made of special high quality alloy steel(SKD-11,different material are available), with long life span

7. Control systems: PLC, Contactor, relay, switch all adopt Siemens brand

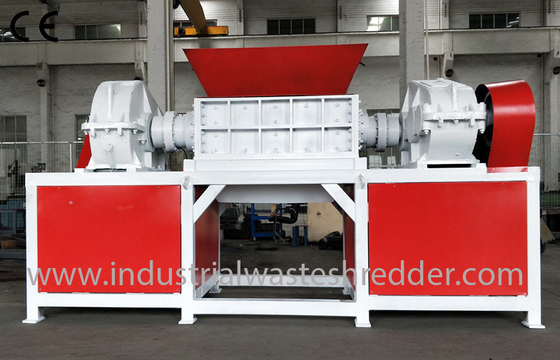

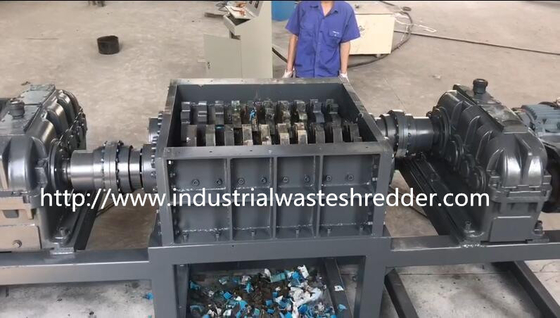

Cardboard box shredder Machine photo display

PLC Control Industrial Cardboard Shredding Machines , Cardboard Box Shredder Machine 0



Quick details

1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.



Typical Application

Plastics reclaimed material, production cut-offs
Paper documents, paper mill waste
Electronic scrap WEEE / E-Waste
Tire used car tire, truck tire
Wood pallets, furniture, crate
Packaging Materials cardboard, woven sacks , cardboard box,cartons,cardboard cores ...
Metals aluminium, copper, steel drums, sheet metal
Textiles clothing, carpet,all textile scraps,fiber
Packaging & containers, banding, shrink wrap, small crates
Animal fur,animal bones,water plants, food



Technical data  (one standard small model for early reference, we customize base on different demands)

Model S-600 S-700
Motor Power 22KW 37 KW
Rotor Blade Qty 26+4 pcs 39 pcs
Stationary Blade Qty 2 pcs 2 pcs
Blade Material Cr12 Mov/SKDII/D2 Cr12 Mov/SKDII/D2
Rotating Speed 75 rpm 75 rpm
Main Rotor Dia 260mm 280mm
Max. Dia of Pipe 400mm 500 mm
Feeding Size 480*480 mm 580*580 mm
Chamber Size 600*600 mm 700*600mm
Hydraulic Motor Power 2.2 kw 2.2 kw
Cylinder Stroke 600mm 600mm
Machine Size / mm 1800*1600*1950 2000*1780*2050
Machine Weight 2400 kgs 3200 kgs
