Product Details:
Payment & Shipping Terms:
|
| Product Name: | Municipal Solid Shredder,MSC Shredder,hard Plastic Shredder,metal Scrap Shredder,wood Shredder ,film Shredder.. | Application: | MSW,Hard Plastic,hard Drum,hdpe/pe/pp Plastic,scrap Metal,wood ... |
|---|---|---|---|
| Blade Material: | 6CrW2Si, 42CrMo, SKD-11, D2, DC53, LD, Cr12MoV / Customizable | Capacity: | Customizable |
| Motor: | Depends On Shred Demand | Installation: | Offer Assembly Drawing/video ,support Abroad Installation |
| Voltage: | 380 V/50 Hz /3 Phase , Customizable | Shaft: | Single/double/four Shafts For Choosing |
| High Light: | municipal waste shredder,plastic pipe shredder |
||

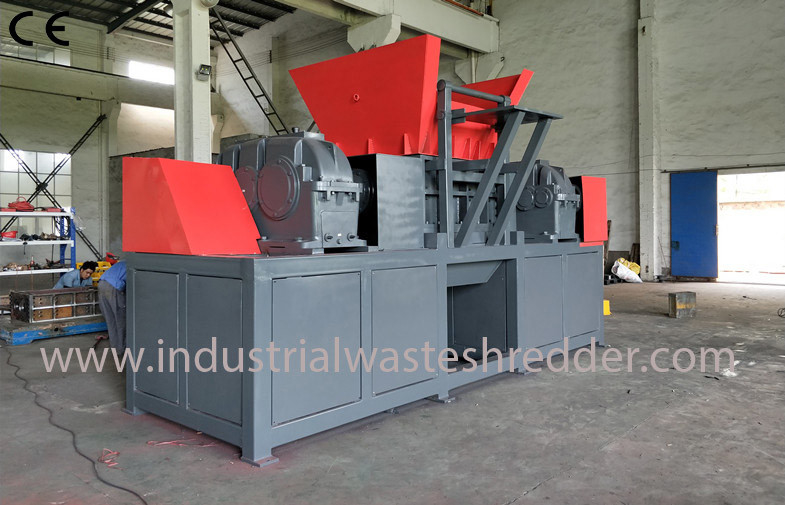

Municipal Solid Waste Shredder , Industrial RDF Shredder Machine For Sale ,MSC Shredder Machine
Description of Municipal Solid Waste Shredder , MSC Shredder

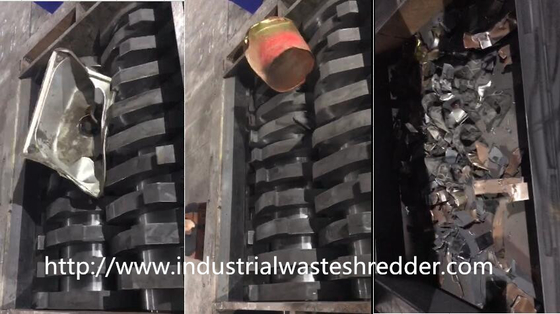

Joful MSW Shredder is the commonly waste shredder and can satisfy different industries' recycling needs. It is used to shred many kinds of waste materials,such as municipal solid waste,MSW, electronic waste, hard plastic, metal, wood, rubber, packing barrel, plastic pallet, etc. After shredding, the material can be recycled directly or keep reducing the size.
MSW / RDF Shredder is with high shredding efficiency, from 0.3 to100 t/h production capacity, and 8mm to 300mm final output size. For different materials, we will design different cutter and do different surface treatment to achieve best shredding effect and highest production rate.
Typical Application
| Municipal solid waste, medical waste, kitchen waste, vegetable market waste, etc |
| Wood, construction model, tree root, garden waste, herb waste. |
| Plastic bag, woven bag, paper-making factory waste, shoe-making factory waste,garment factory waste. |
| Can, glass steel, iron barrel, metal shell, computer hard disk,tire, circuit board, etc. |
| furnace burnt waste, biomass energy regeneration fermentation . Beverage bottle, cosmetic bottle, medicine bottle, jar etc. |
Technical data (one standard small model for early reference, we customize base on different demands)
| Model | S-600 |
| Motor Power | 37 KW / customizable |
| Rotor Blade Qty | 39 pcs / depends ) |
| Stationary Blade Qty | 2 pcs / (depends ) |
| Blade Material | Cr12 Mov/SKDII/D2 ... |
| Rotating Speed | 75 rpm |
| Main Rotor Dia | 280mm / depends |
| Max. Dia of Pipe | 500mm / depends |
| Feeding Size | 580*580 mm / depends |
| Chamber Size | 700*600 mm / depends |
| Hydraulic Motor Power | 2.2 kw / depends |
| Cylinder Stroke | 600mm / depends |
| Machine Size / mm | 2000*1780*2050 / depends |
| Machine Weight | 3200 kgs / depends |
Quick details
1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation
4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.
