Plastic Lump Industrial Waste Shredder Double Shaft Low Energy Consumption

  • Plastic Lump Industrial Waste Shredder Double Shaft Low Energy Consumption
  • Plastic Lump Industrial Waste Shredder Double Shaft Low Energy Consumption
Place of Origin CN
Brand Name Joful
Certification CE
Model Number T-400/600/800/1000/1200/1500/2000
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Film , EPE Foam , Export Wooden Box / or per clients request
Delivery Time 7-45 working days
Supply Ability 40 sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Plastic Shredder,plastic Lump Shredder,plastic Pipe/pallet Shredder Application Plastic Pipe,plastic Lump ,plastic Pallet,plastic Barrel,plastic Bucket ,plastic Crate Etc
Blade Material Sicr Cris H13 Ld ... / Customizable Capacity Customizable
Output Size 10-100 Mm Feature Low Speed,high Tore,low Noise
Installation Offer Assembly Drawing/video ,support Abroad Installation Voltage 380 V/50 Hz /3 Phase , Customizable
Highlight

heavy duty industrial shredder

,

mattress shredding machines
Leave a Message
Product Description

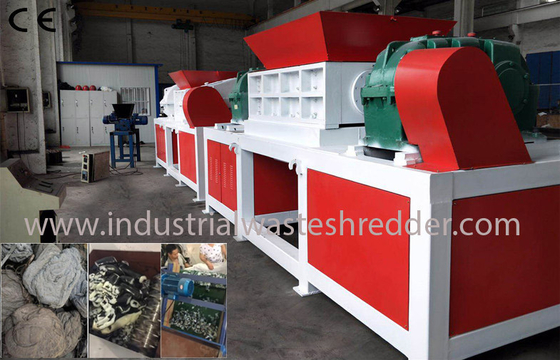

Double Shaft Industrial Waste Shredder For Plastic Lump , Scrap Plastic Lump Shredder





Description of plastic lump shredder

We are manufacturer with more than 15 years design and manufacturing experience on blade & cutters.

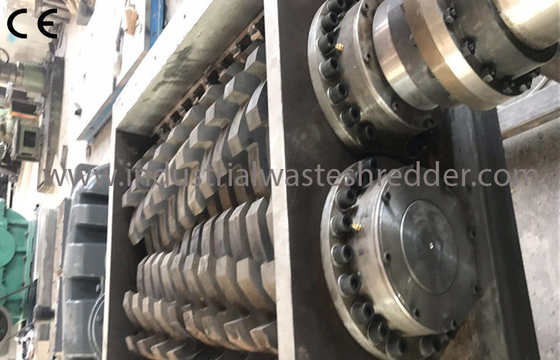

The blades are made of special alloy steel with high strength, strong antiwear and reparability.Our plastic shredder machine use low speed, high torque hook shear blades manufactured of high alloy heat treated steel mounted on hexagonal shafts. The number of hooks, reach of hooks, and blade thickness are determined by the material being reduced.

The electric part takes advantage of SIEMENS PLC program and touch screen control with video monitor system and the automatic detecting overload protection function. Depends on which type material need to shred & output size demand,we'll recommand one shaft , double shaft or four shaft shredder machine accordingly.





Features

  • The tear blades use high quality material, life period is long.
  • The tear blades speed is low so guarantee high torque, low noise, low energy consumption
  • Very efficient, labor cost saving, low input and highoutput.
  • Easy to operate and maintain ,you don't need to install.
  • Run soundly and consistently, can work for a long time non-stop .





Application

  • Plastic & rubber
  • Tin plate material
  • Wood,logs,wood chip,wood furniture
  • Iron drum,plastic drum /bucket/barrel,dustbin,PET bottles,HDPE,PE
  • Waste electrical appliance
  • Bicycles & Motorcycle shell similar materials
  • Empty tanks (without liquid materials & painting, etc)
  • scrap metal
  • Paper,files,books,cardboard,carton,
  • Film

Mini model T-800 (standard model for general reference)

Model JFMT-800
Motor Power 15+15 KW ... ( customizable)
Rotor Blade Qty 20 pcs (more pcs also available)
Rotor Blade Thickness 40mm (other thickness also available)
Blade Material Sicr Cris H13 Ld ... (customizable)
Speed 15-24rpm
Rotor Dia 285mm (adjustable)
Chamber Size 800*430mm (adjustable)
Machine Size / mm 3200*1300*1950 (depends)
Machine Weight 3300 kgs (depends)



Plastic Lump Industrial Waste Shredder Double Shaft Low Energy Consumption 0





How does the machine work ?

Step 1. The material walk into the inner part of the chamber box through the feeding system.

Step 2. The box is loaded with tear blades, and the material is torn apart, extruded, cut and so on.

Step 3. The material is shredded into small pieces and discharged from the bottom part of the box.









Quick details


1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.





Service

Pre-Sale Service

  • Offer consultation service&suggestion
  • Sample testing support.
  • Support View our Factory (offer invitation letter,hotel recommandation&flight suggestion,pick up service)

After-Sale Service

  • Training how to install the machine, training how to use the machine.Also offer assembly drawing or video
  • Engineers available to service machinery overseas.
  • life long time in time after sale service ( we response any question from old clients more faster than new clients)
  • Any spare parts or wearing parts, you can get from us in cost price.
