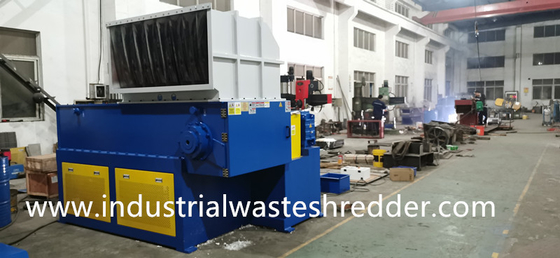

XR1300 Die Materials Plastic Lumps Shredder Length 1350mm 75KW Motor
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Single Shaft Shredder,plastic Film Bale Shredder,shredding Machine For Film Bale , Packed Plastic Film Shredder Machine | Application | Plastic Lump,die Materials,thick Plastic,thick Rubber,Baled PET Bottles ,aluminum Cans Bale , Film Bale, Paper Bale, Cardboard Bale,woven Bags Bale... |
---|---|---|---|
Blade Material | SKD-11, D2, DC53, LD, Cr12MoV / Customizable | Capacity | Customizable |
Motor | 22 Kw / Depends On Shred Demand | Installation | Offer Assembly Drawing/video ,support Abroad Installation |
Voltage | 380 V/50 Hz /3 Phase , Customizable | Advantage | 100% Inspection Before Delivery And Guarantee Quality |
High Light | Die Materials Plastic Lumps Shredder,75KW Motor Plastic Lumps Shredder,Q235B Single Shaft Shredder |
XR1300 Plastic Plallets Shredder,Plastic Lumps Shredder,Effective Rotor Length1350mm,75KW Motor

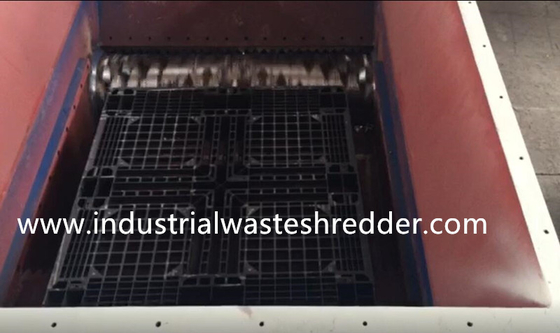

XR1300 Shredder for Plastic Pallet ,Pipes, and Plastic Lumps like PP PE PS ABS,HDPE,LD ..
Main Technical Data
Project | Description | Details | |
Single shaft shredder:XR-1300 | |||
1 | Model | XR-1300 | |
2 | Suitable material | Plastic Lumps, Pipes,Plastic pallect… | |
3 | Feed inlet | 1500*1600 mm | |
5 | Rotary blade diameter | 450 mm (Effective length:1350mm) | |
6 | Machine Dimension | 4300*2200*2300mm | |
7 | Rotating speed | 75 rpm | |
8 | hobbing cutter Dia | 450 mm (effective lenght:1350mm) | |
9 | Rotary blade material | D2 | |
10 | Blade hardness | HRC55-60 (adjustable per different materials) | |
11 | Blade shaft machining method | Welded seat | |
12 | Rotary blade qty | 90 sets size 40*40*25mm | |
13 | Stationary blade qty | 2 sets | |
14 | Wall thickness of machine | 30 mm | |
15 | Steel material | Q235B | |
16 | Steel material | Q345B | |
17 | Bracket material | Q235B | |
18 | Driving power | 75 kw 4P 380V50Hz 3Ph | |
20 | Machine net weight | 8 tons | |
Electrical configuration | |||
21 | Motor protection program | TP44 | |
22 | Motor brand | Famous Chinese brand Xi'an Sima or Wan nan Motor | |
23 | Noise | <75 decibel | |
24 | Gearbox brand | China famous brand Jiangsu Guomao reducer | |
25 | Connection method | Spindle and gearbox connected by coupling | |
26 | Bearing brand | China famous brand Wafangdian ( head factory) | |
27 | PLC | Siemens PLC | |
28 | Main electrical connector | Schneider | |
Hydraulic system | |||
29 | Hydraulic station motor | 7.5 kw | |
30 | Max pressure | 10Mpa working pressure | |
31 | Hydraulic cylinder diameter | 100 mm*2 | |
32 | cooling method | Water cooling + wind cooling | |
Pushing (material ) system | |||
33 | Pushing stroke | 1400 mm | |
34 | Control method | PLC Fully automatic computer control |
Note:
1. The above machine configuration is the standard configuration of our factory, and the specific configuration will be different for different materials. Please call us for specific conditions or special requirements.
2. Single-shaft shredder knife holders can be divided into three types: welded knife holders, detachable knife holders and integrated knife holders. For details, please communicate with our company's sales staff to confirm that the knife holders are suitable.
3. The above technical parameters are for reference only, and are subject to change without notice. Customers please call and confirm with our sales staff before ordering.

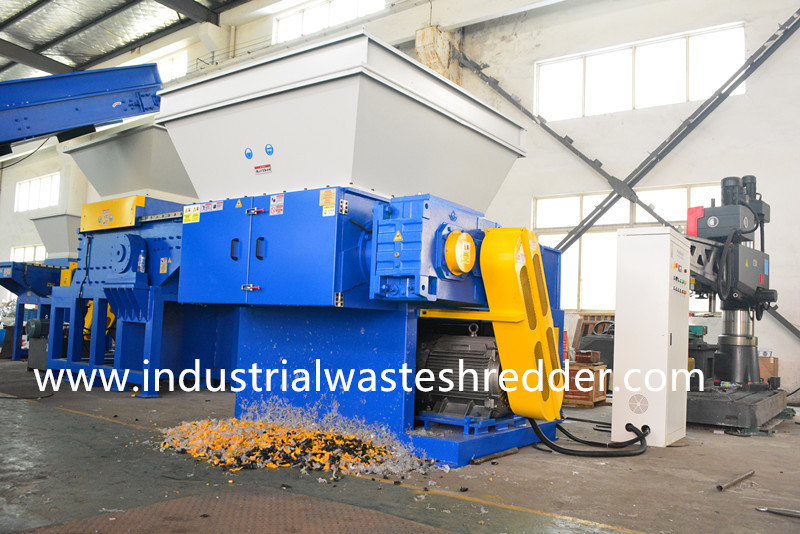

Introduction of Single Shaft Shredder
XR series shredder is a universal shredder developed by our factory, which can effectively shred most materials. Small energy consumption, high output, easy to move and other characteristics. Users can choose different models according to the size of materials and the required handling capacity to achieve the purpose of "limited resources, unlimited recycling". This series of shredder can be used to tear more difficult to break plastic, rubber, tires, nylon plastic, automobile bumper, waste fishing nets, plastic pipe, fiber, paper, electrical components, cable, circuit board, wood, etc.
Features:
- 1. The single-spindle shredder is strong and durable. Suitable for recovery of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic pads. Shred particles can be as small as 20mm according to different needs. And according to customer demand to provide a variety of feeding hopper. The equipment is low speed rotary knife, low noise, more energy saving.
- 2. The single-spindle shredder is composed of moving cutter and fixed cutter to finish the function of shredding materials. The cutter head consists of a base axis and a number of quadrilateral moving cutter blocks. Moving knife block has 4 cutting edges, replace use. The moving knife block is arranged in v-shaped multiple rows along the base axis, and is fixed on the base axis with screws, which are rotated together with the base axis to form the moving knife disk. Static knife has two groups, fixed on the rack. The material is driven to the cutter head by the horizontal hydraulic cylinder. The speed is stable and adjustable, and the propulsive force is large and even. Suitable for recovery of bulk solid materials, irregular refractory materials, plastic containers and plastic barrels, tubes, film, fiber, paper, etc. Spindle speed is 45~100 RPM.
- 3. According to different materials, different knives and sticks can be selected. Choosing knives and sticks correctly can greatly improve the performance and production efficiency of the equipment. The knives and sticks provided by our factory are: high performance knives and sticks, hard material knives and sticks and thin film knives and sticks.
- 4. When choosing different knives and sticks, our factory also designs different installation methods of knife holders according to the characteristics of different materials: welding movable knife holder, detachable movable knife holder, and integral movable knife holder.
