Single Shaft Shredder
Created with Pixso.

135KW Motor 1500x1100Mm Cable Shredder With Movable Feeding Hopper

135KW Motor 1500x1100Mm Cable Shredder With Movable Feeding Hopper

Brand Name: Joful
Model Number: XRM1500
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 40 sets per month
Detail Information
Place of Origin:
CN
Product Name:
Single Shaft Shredder,plastic Film Bale Shredder,shredding Machine For Film Bale , Packed Plastic Film Shredder Machine
Application:
Plastic Lump,die Materials,thick Plastic,thick Rubber,Baled PET Bottles ,aluminum Cans Bale , Film Bale, Paper Bale, Cardboard Bale,woven Bags Bale...
Blade Material:
SKD-11, D2, DC53, LD, Cr12MoV / Customizable
Capacity:
Customizable
Motor:
22 Kw / Depends On Shred Demand
Installation:
Offer Assembly Drawing/video ,support Abroad Installation
Voltage:
380 V/50 Hz /3 Phase , Customizable
Advantage:
100% Inspection Before Delivery And Guarantee Quality
Packaging Details:
Film , EPE Foam wrapped packing
Supply Ability:
40 sets per month
Highlight:

135KW Motor Cable Shredder

,

Movable Feeding Hopper Cable Shredder

,

1500X1100mm Cable Shredder

Product Description

XRM1500 Cable Wires Shredder With Movable Feeding Hopper ,110KW -135KW Motor,Shredding Chamber Size 1500*1100 Mm

Cable Wires Scrap Shredder Machine With Movable Shredding Hopper XRM 1500




Specifications



(Model): XRM1500
(Motor Power): 110 kw-132kw
(Qty of Rotor blades): 105 pcs
(Qty of Fixed blades): 2 pcs
(Materials of blades): Cr12MoV/SKDII/D2/DC53
(Speed): 50-80 rpm
(feeding Size): 1800*2100 mm
(Diameter of Rotor): 550 mm
(shredding room size): 1500*1100 mm
(Hydraulic motor power): 11kw
(Cylinder stroke): 1100 mm
(Dimension L/W/H): 5200*2480*2600 mm
(Weight): 14500 kg

Note:

  1. 1. The above machine configuration is the standard configuration of our factory, and the specific configuration will be different for different materials. Please call us for specific conditions or special requirements.
  2. 2. Single-shaft shredder knife holders can be divided into three types: welded knife holders, detachable knife holders and integrated knife holders. For details, please communicate with our company's sales staff to confirm that the knife holders are suitable.
  3. 3. The above technical parameters are for reference only, and are subject to change without notice. Customers please call and confirm with our sales staff before ordering.



Feature & Main Application of the Movable Hopper Single Shaft Shredder


  • The movable hopper single shaft shredder is especially suitable for shredding large-volume  materials,such as plastic pallets, packed PET bottles, chemical barrels, plastic containers ect. Suitable for large & ligth materials like film bale,foam bale,cable wires ect
  • The mobile feed hopper can greatly improve the efficiency of material shredding and avoid the problem of low shredding efficiency caused by the too small rotating diameter of the knife shaft.
  • Compared with foreign large-swing diameter shredder ,our movable hopper design single shaft shredder is greatly saves customers' purchase cost.

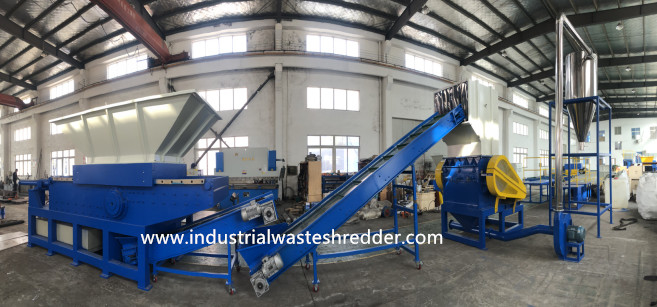

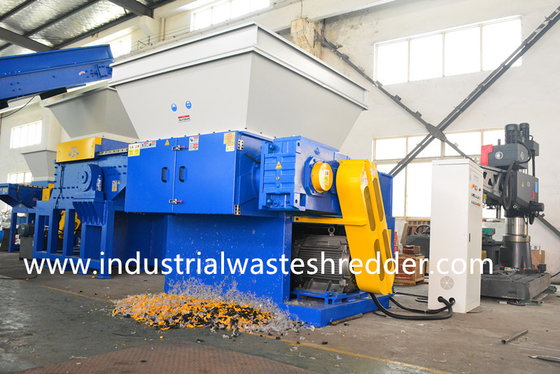

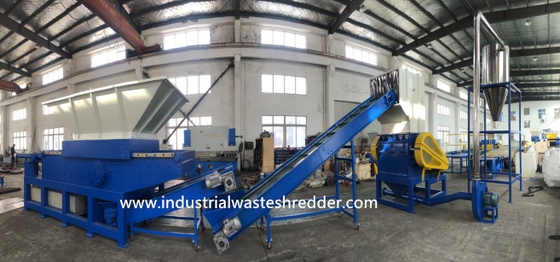

Shredding Sample Case Display


135KW Motor 1500x1100Mm Cable Shredder With Movable Feeding Hopper 0







Quick details


1. Lead time - 65 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.
