37KW Motor Jumbo Bags Single Shaft Shredder With Movable Feeding Hopper

  • 37KW Motor Jumbo Bags Single Shaft Shredder With Movable Feeding Hopper
  • 37KW Motor Jumbo Bags Single Shaft Shredder With Movable Feeding Hopper
  • 37KW Motor Jumbo Bags Single Shaft Shredder With Movable Feeding Hopper
Place of Origin CN
Brand Name Joful
Model Number XRM760
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Film , EPE Foam wrapped packing
Delivery Time 65 working days
Payment Terms T/T
Supply Ability 40 sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Shaft Shredder,plastic Film Bale Shredder,shredding Machine For Film Bale , Packed Plastic Film Shredder Machine Application Plastic Lump,die Materials,thick Plastic,thick Rubber,Baled PET Bottles ,aluminum Cans Bale , Film Bale, Paper Bale, Cardboard Bale,woven Bags Bale...
Blade Material SKD-11, D2, DC53, LD, Cr12MoV / Customizable Capacity Customizable
Motor 22 Kw / Depends On Shred Demand Installation Offer Assembly Drawing/video ,support Abroad Installation
Voltage 380 V/50 Hz /3 Phase , Customizable Advantage 100% Inspection Before Delivery And Guarantee Quality
Highlight

Movable Feeding Hopper Single Shaft Shredder

,

Jumbo Bags Single Shaft Shredder

,

37KW Single Shaft Shredder
Leave a Message
Product Description

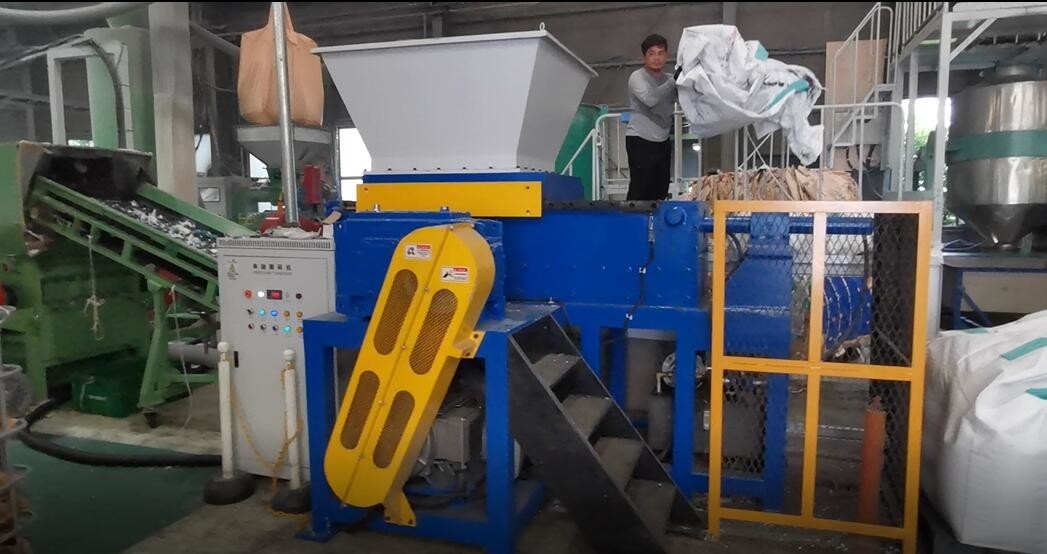

XRM 760 Jumbo Bags Shredder With Movable Feeding Hopper ,37KW Motor,Shredding Chamber Size 760*700 Mm

Big Jumbo Bags Shredder Machine With Movable Shredding Chamber XRM760



Feature & Main Application of the Movable Hopper Single Shaft Shredder for Big Jumbo Bags

  • The movable hopper single shaft shredder is especially suitable for shredding large-volume materials, such as Film bales,big bags,foam blocks,plastic pallets, packed PET bottles, chemical barrels, plastic containers ect
  • The mobile feed hopper can greatly improve the efficiency of material shredding and avoid the problem of low shredding efficiency caused by the too small rotating diameter of the knife shaft.
  • Compared with foreign large-swing diameter shredder ,our movable hopper design single shaft shredder is greatly saves customers' purchase cost.





Specifications

(Model): XRM760
(Motor Power): 37kw
(Qty of Rotor blades): 30
(Qty of Fixed blades): 2pcs
(Materials of blades): Cr12MoV/SKDII/D2/DC53
(Speed): 50-80 rpm
(feeding Size): 1000*1100 mm
(Diameter of Rotor): 400mm
(shredding room size): 760*700mm
(Hydraulic motor power): 3 kw
(Cylinder stroke): 700 mm
(Dimension L/W/H): 3000*2250*2600 mm
(Weight): 4000kg

Note:

  1. 1. The above machine configuration is the standard configuration of our factory, and the specific configuration will be different for different materials. Please call us for specific conditions or special requirements.
  2. 2. Single-shaft shredder knife holders can be divided into three types: welded knife holders, detachable knife holders and integrated knife holders. For details, please communicate with our company's sales staff to confirm that the knife holders are suitable.
  3. 3. The above technical parameters are for reference only, and are subject to change without notice. Customers please call and confirm with our sales staff before ordering.











Shredding Sample Case Display

37KW Motor Jumbo Bags Single Shaft Shredder With Movable Feeding Hopper 0



37KW Motor Jumbo Bags Single Shaft Shredder With Movable Feeding Hopper 1









Quick details

1. Lead time - 65 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.
