Stable Pet Shredder Machine , Single Shaft Plastic Bottle Shredder Safe Operation

China Stable Pet Shredder Machine , Single Shaft Plastic Bottle Shredder Safe Operation supplier
Stable Pet Shredder Machine , Single Shaft Plastic Bottle Shredder Safe Operation supplier Stable Pet Shredder Machine , Single Shaft Plastic Bottle Shredder Safe Operation supplier

Large Image :  Stable Pet Shredder Machine , Single Shaft Plastic Bottle Shredder Safe Operation

Product Details:

Place of Origin: CN
Brand Name: Joful
Certification: CE
Model Number: S-600/700/800/1000 / T-400/600/800/1000/1200/1500/2000 ..

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Film , EPE Foam , Export Wooden Box / or per clients request
Delivery Time: 7-48 working days
Supply Ability: 45 sets per month
Contact Now
Detailed Product Description
Product Name: Solid Waste Shredder,PET Bottles Shredder,Plastic Hard Materials Shredder,HDPE/PP/PE/ABS Shredder Capacity: Customizable
Blade Material: Cr12 Mov/SKDII/D2/H13... Blade Type: The Rotary Blade Adopt The V Design
Motor: Depends On Shred Demand Installation: Offer Assembly Drawing/video ,support Abroad Installation
Voltage: 380 V/50 Hz /3 Phase , Customizable Material Feeding: Hydraulic Feeding



Single Shaft Solid Waste Shredder For PET Bottles , pet bottles bale , PET bottles shredding machine

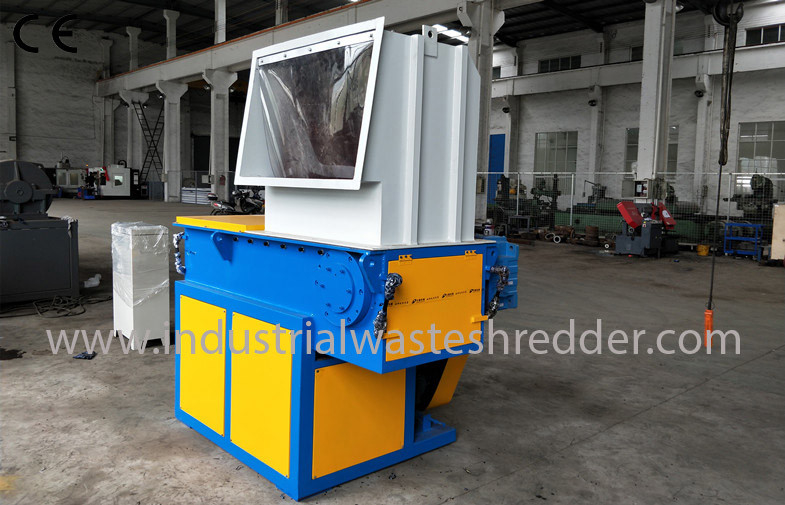

Single shaft PET bottles shredder machine photo display


Stable Pet Shredder Machine , Single Shaft Plastic Bottle Shredder Safe Operation





Description of Single Shaft Solid Waste Shredder,PET bottles shredding machine


The Joful single shaft PET bottles shredder is used as pre shredder , it can shred both loose PET bottles and baled pet bottles / aluminum cans into plastic pet flakes. For granulation,it will need grinder to further reduce the flake size.



The Single Shaft Shredder is designed and applicable to intractable, hard and irregular enginerring plastics such as large thick pipes, lumps from extruder, package barrels, buckets, trays,rubber, wood, etc. Working with medium speed and tenderly, low noise, low power consumption. Rotary knife designed symmetrically, can be exchanged four times for use, which prolong use long life span. When push materials by hydraulic, can select speed and pressure freely according to different materials load. It is with low labor strength, safe& reliable operation.





Advantages of Joful single shaft solid waste shredder, PET bottles shredder


1. The machine is suitable to treat the big size of plastic product ,such as big diameter plastic pipe ,pressing plastic film and others.

2. The blade base and blade on the rotary roller can be dis-assembly .it is easy to clean and maintenance.

3. The rotary blade adopt the V design, It can decrease the noise and decrease energy consumption.

4. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continues use.

5. Each fixed blade with 2 cutting knife edge, when the fixed blade is wear, it can be rotated to 180 degree, then the blade can continues use.

6. The main axis is drive by gearbox, its running very stably, low noise and strong power.

7. The material push feeding system is hydraulic ways , ,its running very stably.





Typical Application of Single Shaft Solid Waste Shredder,PET bottles shredding machine


Thick pipes HDPE/PE/PP/ABS/PET pipes
Thick Rubber Car tires,truck tires ...
Lumps Lump from extruder,profile ...
Baled materials Baled bottles,baled cans,baled paper,baled cardboard,baled film ,baled jumbo bags,baled milk box
Wood Wood plate,tree roots,wood pallets,wood crate ...
E waste Hard driver,hard disk,PCB, WEEE waste ...
Textile Waste Textile scraps,old clothes,fabrics...





Quick details



1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing /videos
  • b. If necessary we also support abroad installation and free translator support service

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.





FAQ


Q. How do you ensure us quality?
A. We have a quality supervision department who are responsible for tracking and monitoring for whole production process. We will running every machine after finished before shipment. Optional choose by client running the machinery by material.



Q. How much is the shredder machine ?

A. It depends on your answer to below question

  1. Which Material you need to crush? What's the max size if the materials ? (Better show us clear photos)
  2. What's your output demand per hr / day ?
  3. What's your final size request ?
