Single Shaft Hard Plastic Lump Shredder , HDPE Plastic Pipe Shredder Smooth Speed

China Single Shaft Hard Plastic Lump Shredder , HDPE  Plastic Pipe Shredder Smooth Speed supplier
Single Shaft Hard Plastic Lump Shredder , HDPE  Plastic Pipe Shredder Smooth Speed supplier Single Shaft Hard Plastic Lump Shredder , HDPE  Plastic Pipe Shredder Smooth Speed supplier

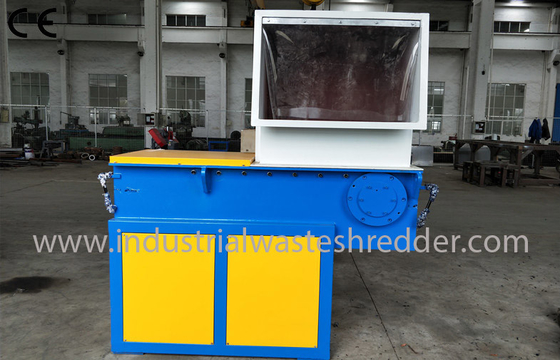

Large Image :  Single Shaft Hard Plastic Lump Shredder , HDPE Plastic Pipe Shredder Smooth Speed

Product Details:

Place of Origin: CN
Brand Name: Joful
Certification: CE
Model Number: S-600/700/800/1000 ...

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Film , EPE Foam , Export Wooden Box / or per clients request
Delivery Time: 7-48 working days
Supply Ability: 40 sets per month
Contact Now
Detailed Product Description
Product Name: Solid Waste Shredder,hard Plastic Shredder,plastic Lump Shredder,HDPE/PP Pipe Shredder Application: Hard Plastic,hard Drum,hdpe/pe/pp Plastic,scrap Metal,wood ...
Blade Material: Cr12 Mov/SKDII/D2/H13... Capacity: Customizable
Motor: 22 Kw / Depends On Shred Demand Installation: Offer Assembly Drawing/video ,support Abroad Installation
Voltage: 380 V/50 Hz /3 Phase , Customizable Shaft: Single/double/four Shafts For Choosing



Single Shaft Solid Waste Shredder For Hard Plastic , Plastic Lumps , HDPE / PE / PP Pipes





Description of solid waste plastic shredder,hard plastic shredder


S-series is a type of solid shredder machine for general use, it can shred most materials effectively with small energy consumption, high output and easy move features. Users can choose the different models according to the material that need to shred and the capacity demand. This series solid waste shredders is generally used to shred hard material which are more difficult to break,like hard plastic, rubber, tires, nylon plastic, car bumpers, abandoned fishing nets, plastic pipe, fiber, paper bale, electrical





Features


 1 Electronic controls are a combination of siemens and schneider
 2 Automatic reverse sensors to protect the machine against over loading and jamming
 3 Adopt split bearing block technology so the blades can be changed quickly and efficiently
 4 Utilises high torque at low speed to maximiser power and minimiser noise
 5 Propulsion of horizontal hydraulic cylinder is large and uniform, the speed is smooth and adjustable
 6 With wide range of blade material available for choosing,the  knife with "V" shaped installation





Quick details


1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.





Technical data  (one standard small model for early reference, we customize base on different demands)


Model S-600
Motor Power 22KW / customizable
Rotor Blade Qty 26+4 pcs / depends )
Stationary Blade Qty 2 pcs / (depends )
Blade Material Cr12 Mov/SKDII/D2 ...
Rotating Speed 75 rpm
Main Rotor Dia 260mm / depends
Max. Dia of Pipe 400mm / depends
Feeding Size 480*480 mm / depends
Chamber Size 600*600 mm / depends
Hydraulic Motor Power 2.2 kw / depends
Cylinder Stroke 600mm / depends
Machine Size / mm 1800*1600*1950  / depends
Machine Weight 2400 kgs  / depends

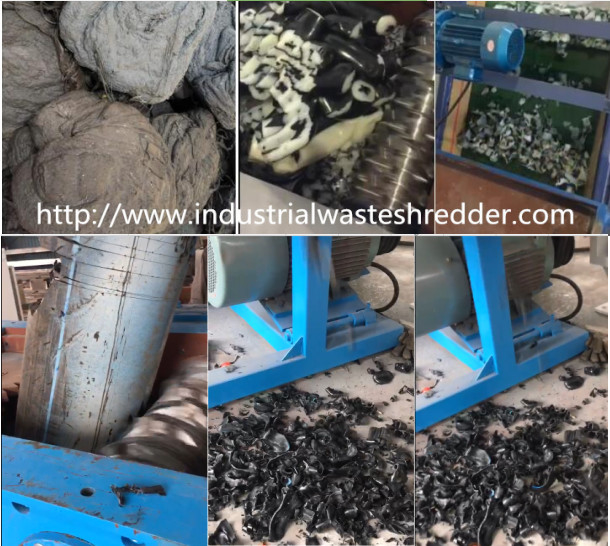

Machine photos


Single Shaft Hard Plastic Lump Shredder , HDPE  Plastic Pipe Shredder Smooth Speed
