Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter

Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter
Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter

Large Image :  Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter

Product Details:

Place of Origin: China (Mainland)
Brand Name: XH-JF
Certification: CE
Model Number: JF-500/800/1200/1600/2400/3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box for LCL delivery protection
Delivery Time: Within 35 working days after deposit arrived
Payment Terms: T/T, L/C
Supply Ability: Monthly around 40 sets
Detailed Product Description
Product Name: Plastic Fiber Yarns Waste Recycling Cutting Machine Application: All Soft Type Materials Available
Discharge Size: Controlled By Sieve Mesh, Customizable Working Voltage: 3P 220/240/380/415/440V, Same Price
Blades Design: Twisted Rotary Blades Blades Length: 400/600/800/1200/1600mm
Machine Maintenance: Replaceable Blades, With Automatic Sharpener Hourly Capacity: Maximum Up To 8 Tons Per Hour

Monofilament Plastic Fiber Cotton Yarns Cutting Machine Twisted Blades High Speed Rotating Cutting Widely Usage



Special Design & Widely Application

Special Design

The working principles is different from regular shredder and crusher machine in the market, our machine is designed especially for soft type materials, the working principles is like a scssors, it's much more power saving and higher efficiency compare with regular shredder in the market



Adopt with rotating twisted knife design, with application of international leading oblique knob scroll meet the shear design of point moving knife and fixed knife, continuous high-speed shear (see below blades samples)



Take model 2400F for examples, the blades length is 1200mm, there is 8 piececs rotary blades, 2 pieces stationary blades, each round rotating means 16 times cutting, the rotary blades is around 200-300 rpm, totally means 3200-4800 times cutting per minute



Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter 0



Widely Application

Beside the fibers yarns, it can be used for other almost all soft type materials recycling cutting, such as below

All kinds of yarn and textile, such like nylon yarn, polyester yarn, viscose yarn, flax yarn, cotton yarn, silk yarn, wool yarn, clothes, fabric , quilt edges, threads, underwear scrap, jeans, towel, cap scraps, non-woven fabrics, cotton fabric, shoes leftover waste etc
Bags such as jumbo bags, tons bags, airbags, safety bags, PP bags, woven bags, plastic bags, airbags, PP/PE/LDPE materials, as long as they are soft bags
All kinds of fiber materials, glass fiber, nylon fiber, hemp fiber, coconut fiber, polypropylene fiber, polyester fiber, silk fiber, dacron fiber, Viscose fiber, and other material fibers
Plastic films, industry films, agriculture films, PE films, PP films, HDPE films, TPU films, PVC films, PET films, PP/PET strips
Leather, carpet, rug, papers, PU, wall paper, books, cardboard, plant straw, fish net, ropes etc
Foam, sponge, mattress scraps, flexible PU foam, EPS foam, XPS foam, rock wool foam, glass wool foam, EPE foam



Description About The Fiber Yarns Cutting Machine

Main Datas

cutting motor 8P motor, 5.5/7.5/1518.5/22/44/66KW
transport motor 4P Inverter motor, adjustable speed
blades length 400/600/800/1200/1600mm
QC 100% inspection and test before delivery
RD Customized solution available
power distribution cabinet independent distribution cabinet
Input/output belt width 330/520/720/1200mm
input/output belt length 1400/3000/4000mm, can be customizable
moving knife Alloy tool steel,4/6/8 pieces knife
fix knife Alloy tool steel,2 pieces knife
main machine size per different models
machine maintenance we supplu blades sharpening device
machine color  blue/orange/yellow/white, or as your request

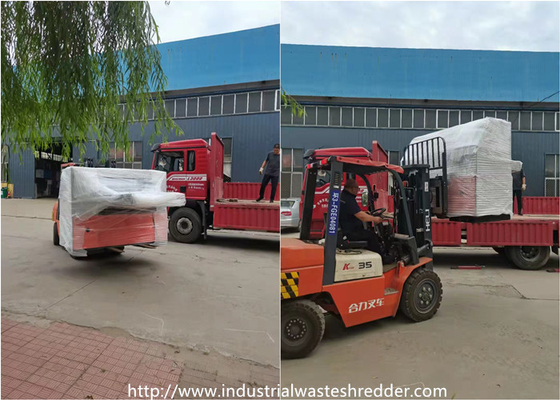

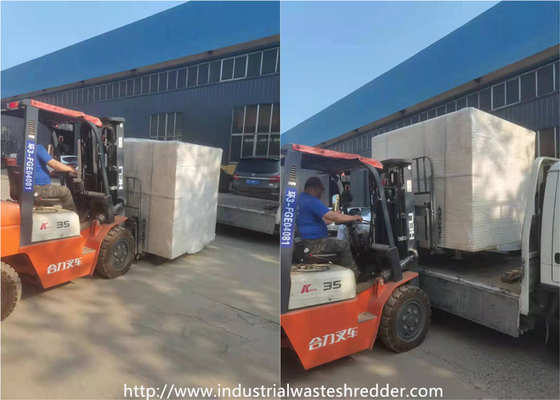

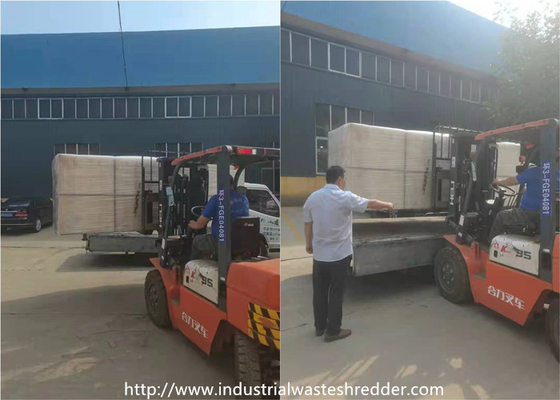

Delivery & Installation

Wooden box package delivery, inner metal frame fixed, outside plywood cover, ensure the long distance transportation safety, while no need fumigation, totally safe and convenient



For the cutting machine, complete machine delivery, you just need install the belt and connect the power cord will be ok, we will offer you videos and drawings, you can finsih installation easily by yourself



For complete recycling line with dust control system, opening to fiber device, sorting device, we support oversea machine install service and traing your staffs





After Sales Support & Machine Price

After-Sale Service

a: We offer life long technical support for free ,and we solve all after sale question inquiry within 12 hours lastest. ( we can offer instant service if we're in same time zone)

b: We have regular return visit for all old clients. For new clients , we contact them every week for feedback , if they keep slience we will contact every one / two months for feedback



Machine Price

We have different models, the price is different, manily depending on below request

* what materials you need to cutting

* hourly capacity and discharge size request

* price terms request, RMB or USD, Ex,work or FOB/CIF

* spare parts needed, such like blades

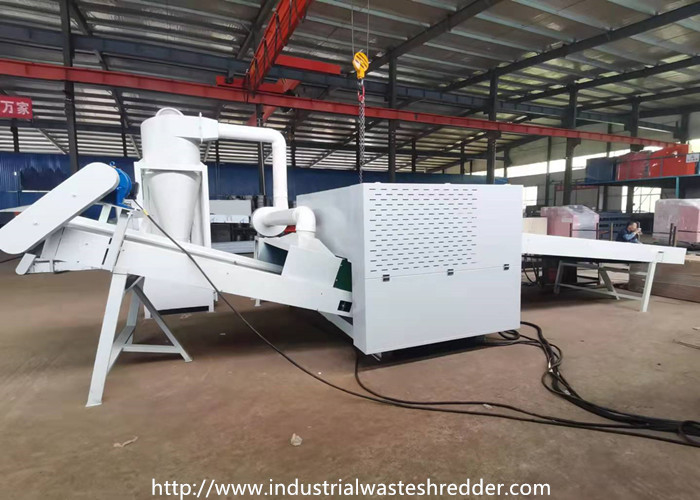

Workshop For Your Refer

Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter 1



Cutting Samples Display

Monofilament Fiber Plastic Waste Shredder PP/Nylon/PA66/Polyester Fiber Yarn Cutter 2
