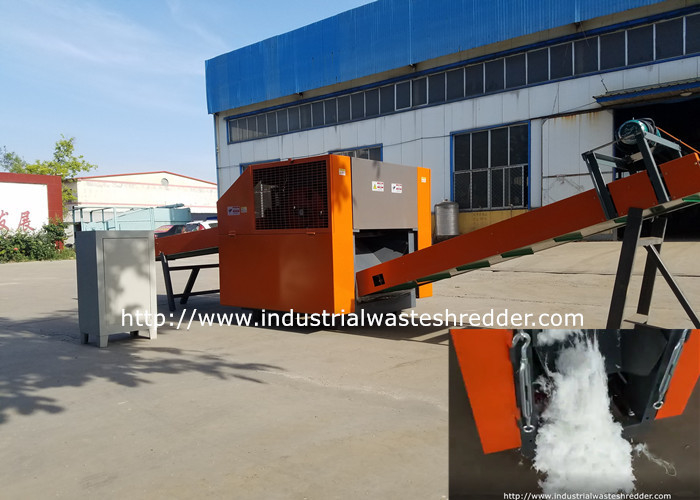

Polyester Dacron Fiber Yarns Industrial Waste Shredder High Elastic Strength Cutting Machine

Place of Origin China (Mainland)
Brand Name Joful
Certification CE/UL
Model Number J500/800/1200/1600/2400/3200
Minimum Order Quantity 1 set
Price Depend on which model you take
Packaging Details Wooden box protect delivery
Delivery Time 5-30 working days after deposit arrived
Payment Terms T/T, L/C
Supply Ability 60 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Polyester Dacron Fiber Yarns Waste Shredder Easy Operate And Maintenance Application All Kinds Soft Materials Available
Guarantee 12 Months After Machine Arrived Annual Production Capacity More Than 700 Sets
Blades Design Rotary Twisted Knife Blades Length 400/600/800/1200mm
Rotary Blades Qty 4/6/8 Pieces Machine Color As Your Request
High Light

industrial shredder machine

,

heavy duty industrial shredder

Leave a Message
Product Description



Polyester Dacron Fiber Yarns Waste Cutting Machine High Elastic Strength  Shredder All Soft Materials Available Customizable Capacity And Cutting Size



Why Chose Joful Cutting Machine

Design specially for soft materials, better working performance
Larger capacity, clean uniform discharge size
Lower price, better cost performance
The machine can be customizable according to your materials and cutting request
With replaceable wear parts (cutting blades), ensure the machine long lifespan
More than 10 years well skilled workers, sound QC system, 100% inspection and test before delivery, totally ensure the quality
With blades sharpening device, easy maintenance
Complete machine delivery,  easy install and operate
Strong supply ability, annual more than 700 sets finish machine export to all over the world
Quick delivery time, machine raw materials in stock available
Wooden box package delivery, totally ensure the safety
In time after sales service, free technology support
15 years global market experience, has different sales agent



Widely Application

For all kinds fibers and yarns available, such like  plastic fiber, silk fiber, glass fiber, nylon fiber, coconut fiber, polypropylene fiber, polyester fiber, silk fiber, dacron fiber, Viscose fiber, nylon yarn, polyester yarn, viscose yarn, flax yarn, cotton yarn, silk yarn, wool yarn, pp yars, high strength elastic fibers yarns available

Beside, it can also be used for textile, clothes, fabric, cotton, quilts, plastic bags, PP bag, jumbo bag, ton bag, bigbag, airbags, woven bags, plastic films, PP/PE/PVC/PVB/HDPE/LDPE films, foams, sponge, rubber sponge, EVA/EPS/EPE foam, carpets,rug, fishing nets, nylon, ropes, leather, PU, as long as they are soft materials



We offer below ways for your test the machine, if you worry about our machine working performance

* Open video call, we will show you our factory, every working processing, and make cutting test at same time ( we find same or similar materials in our local for your test)

* Test in our old client's factory nearby you, we will arrange for you

* Send sample to our factory, we make cutting test and take video for you confirm (we will return the expree cost in your order)

* Test in our oversea sales agent, USA, Taiwan, Mexico)



Description About Polyester Dacron Fiber Cutting Machine

Design

Joful polyester dacron fiber cutting machine adopt with rotating twisted knife design, with application of international leading oblique knob scroll meet the shear design of point moving knife and fixed knife, continuous high-speed shear, just like a big scissors, high speed rotating cutting, the discharge port with detachable screen, screen size can be customizable as your cutting final size request, one machine can equipped with different size screen, fully meet you different cutting size request



Inner Blades Design Sample

Polyester Dacron Fiber Yarns Industrial Waste Shredder High Elastic Strength Cutting Machine 0



Main Datas

model 500C-F/800C-F/1200B-F/2400B-F/3200B-F
cutting motor 8P 5.5/7.5/15/18.5/22/44/66kw per different materials
transport motor 4P Inverter motor, adjustable speed
Working Voltage Customizable, same price
blades materials alloy tool steel
power distribution cabinet independent cabinet
input/output belt width 330/520/720/1200mm
input/output belt length 1400/3000/4000mm, or per client request
moving knife qty 4/6/8 pieces, per cutting size request
stationary knife 2 pieces
blades materials Tungsten 18 chrome 4 vanadium 2
machine materials carbon steel
cutting size adjustable, mini 2mm
output capacity per different materials and cutting size, up to 8,000KG/hour



The Problems You May Possibly Meet After Buying

1. You need to sharpen blade regularly (the sharpening frequency depend on what materials you cut and daily working hours), we supply sharpening machine, or some clients also solve sharpening problem by themselves)
2. You need exchange new blades, generally the blade life normally is 10-24 months depend on different materials, once the blades are getting old or broken, please contact us to get new one and replace the old blades



Quick Details

Delivery Time
5-30 days after deposit arrived
Generally we have machine raw materials in stock, the delivery time can be quicker compared with other supplier

Payment

30% deposit, 70% balance before shipping

After machine finishi, we will make cutting test, take videos and photos for your confirm, beside, we also support third party agent inspection if you need

Installation

a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing

b. If necessary we also support abroad installation and training your workers

Guarantee

Our guarantee period is 12 months after the machine arrived. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors, Beyond the guarantee period the broken parts dispatched are charged at cost price

Machine Price

We have different models cutting machine, the exact price is based on

* what materials you cut

* hourly capacity request

* cutting final size request

About Blades

Generally the blades lifespan is 10-24 months, depend on what you cut and daily working hours, and its replaceable, once its getting old or broken, please contact us to get new one

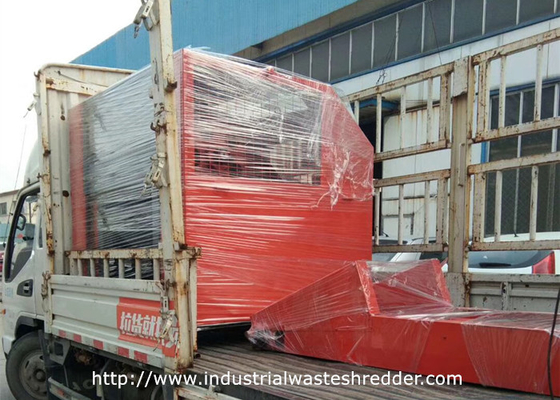

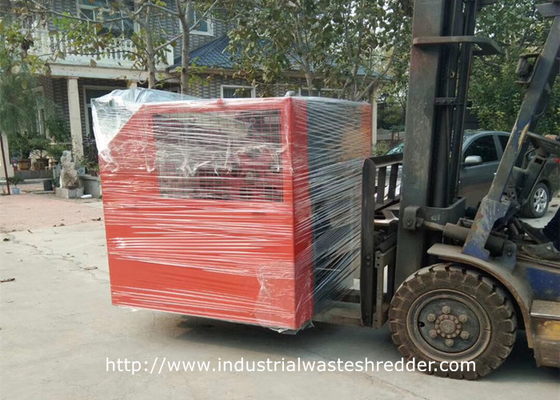

Wooden Box Package Sample For Your Refer

Polyester Dacron Fiber Yarns Industrial Waste Shredder High Elastic Strength Cutting Machine 1



Cutting Pieces Sample

Polyester Dacron Fiber Yarns Industrial Waste Shredder High Elastic Strength Cutting Machine 2



If any interested, please feel free to contact us
