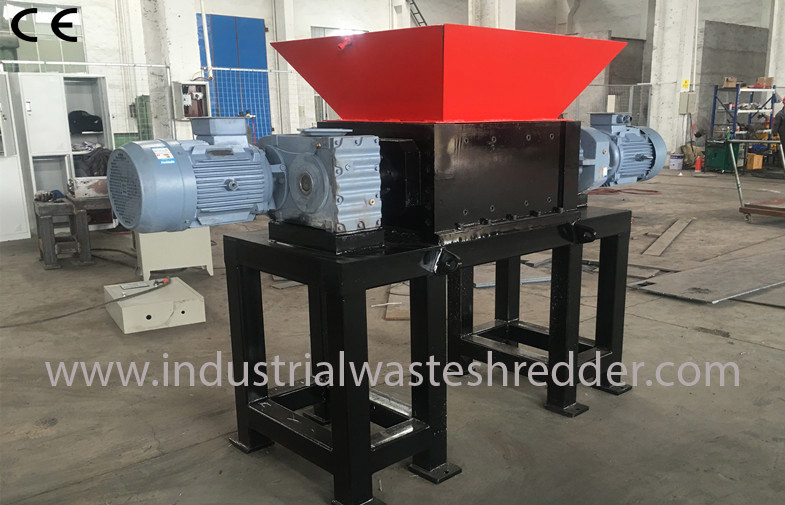

Rolls / Tubes Cardboard Box Shredder Machine Multi - Claw Blades Uniform Discharging

China Rolls / Tubes Cardboard Box Shredder Machine Multi - Claw Blades Uniform Discharging supplier
Rolls / Tubes Cardboard Box Shredder Machine Multi - Claw Blades Uniform Discharging supplier Rolls / Tubes Cardboard Box Shredder Machine Multi - Claw Blades Uniform Discharging supplier Rolls / Tubes Cardboard Box Shredder Machine Multi - Claw Blades Uniform Discharging supplier

Large Image :  Rolls / Tubes Cardboard Box Shredder Machine Multi - Claw Blades Uniform Discharging

Product Details:

Place of Origin: CN
Brand Name: Joful
Certification: CE
Model Number: T-400/600/800/1000/1200/1500/2000 .. F-600/800/1000/1200/1600...

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Film , EPE Foam , Export Wooden Box / or per clients request
Delivery Time: 7-48 working days
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Product Name: Cardboard Rolls Shredding Machine,scrap Cardboard Tubes Shredder, Application: Corrugated Paper,card,files,documents,magazine,books,old Clothes,diaper,textile Scrap,fishing Net,rope...
Blade Material: 6CrW2Si, 42CrMo, SKD-11, D2, DC53, LD, Cr12MoV / Customizable Capacity: Customizable
Motor: Depends On Shred Demand Installation: Offer Assembly Drawing/video ,support Abroad Installation
Feature: 100% QC Inspection Before Shipment Shaft: Single/double/four Shafts For Choosing



Industrial Cardboard Box Shredder , Scrap Cardboard Rolls / Tubes Shredder ,Cardboard Rolls Shredding Machine , Cardboard Tubes Shredder




Introduce of Industrial Cardboard Box Shredder , Scrap Cardboard Rolls / Tubes Shredder


The Industrial Cardboard Box Shredder is specially designed for shredding cardboard,cartons,paper materials etc with the advantages of uniform discharging and controllable size. The materials suitable for shredding main include: scrap corrugated paper, cardboard,cartons,hard covered paper, newspaper, card paper and other paper materials.

Normally used as pre shredder for coarse shredding, shred big size waste into small pieces for easy reprocessing, storage and transportation, creating new value from reusable wastes.For example, the crushed cardboard can be used as raw materials to make new carton or be used as organic fertilizer for plant or just as fuel etc. The crushed papers can be used as raw material to make new paper. The crushed wood can be used as raw material to make MDF board or pallets,or it can be used as fertilizer for plant etc

For specific output size and capacity demand, we have different sizes& configuration shredders,besides,
Our engineer can design the most suitable shredder according to the different demands. It adopts planet gear speed reducer driving; the blade is made of high-strength alloy steel, featured by strong abrasion resistance and high strength etc.; differential operation between axes has the functions of tearing, extrusion and occlusion, etc. The electrical part adopts Siemens electrical elements programming control with automatic detection and overload protection function.



Main Features of Industrial Cardboard Box Shredder , Cardboard Shredding Machine , Shredder For Carton Box


1. High alloy heat treated cutter for extra long life,anti-corrosive and wear-resistant , so makes the blades can be more longer using life
2. Overload protection with automatic reversal-shredders include an electronic protection system to automatically stop and reverse the shredding action in the event of system overload. The system allows the shredder to clear itself and then continues the shredding process automatically.
3. It adopts PLC control system, automatic overload protection and auto reverse switch,so it's very safe to use.
4. The outer frame is made of super thick plates with mixed structure after intensified processing, equipped with powerful hexagonal rotation axis with wide angles and huge-diameter inlet so that huge raw materials may be put inside and crushed.
5. The shredder can be customized according to customer specific requirements for throughput volume& final size request.
Open bottom permits maximum throughput



Soft notice

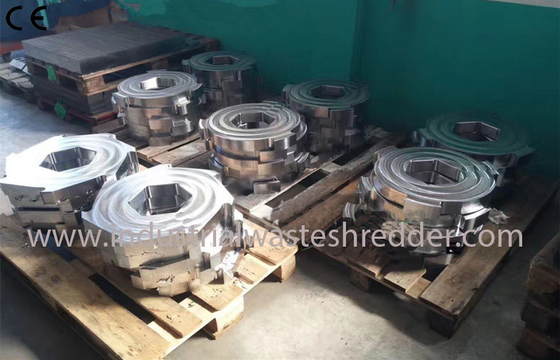

  • 1. Single claw blades for hard material,multi-claw blades for soft material
  • 2. Combined blades easy to change and reducing the cost.
  • 3. Blades thickness is not fixed,we can make as per customer requirement.
  • 4. Supply voltage 3P,380V,50HZ,or as per customer’s requirement
  • 5. Engineer can design the most suitable shredder according to the different materials&shred demands.

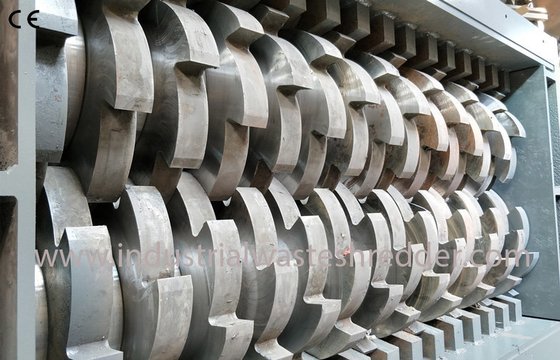

Shredding Chamber photo


Rolls / Tubes Cardboard Box Shredder Machine Multi - Claw Blades Uniform Discharging







Quick details


1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.
