Automatic Industrial Cardboard Shredder , Waste Carton Shredder Machine Energy Saving

  • Automatic Industrial Cardboard Shredder , Waste Carton Shredder Machine Energy Saving
  • Automatic Industrial Cardboard Shredder , Waste Carton Shredder Machine Energy Saving
Place of Origin CN
Brand Name Joful
Certification CE
Model Number T-400/600/800/1000/1200/1500/2000
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Film , EPE Foam , Export Wooden Box / or per clients request
Delivery Time 7-45 working days
Supply Ability 45 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Waste Carton Shredder,Cardboard Shredder,Corrugated Box Shredder,Paper Bale Shredder Application Carton,cardboard,Cardboard Rolls,Cardboard Tubes,paper, Cardboard Cores
Blade Material Sicr Cris H13 Ld ... / Customizable Capacity Customizable
Output Size 10-100 Mm Motor Customizable Base On Shred Demand
Installation Offer Assembly Drawing/video ,support Abroad Installation Voltage 380 V/50 Hz /3 Phase , Customizable
High Light

heavy duty industrial shredder

,

mattress shredding machines
Leave a Message
Product Description



Double Shaft Industrial Waste Carton Shredder , Waste Carton Crusher Machine , Corrugated Box Shredder, Cardboard Rolls Shredder,Cardboard Tubes Shreder,Paper Shredder





Main Introduce of Double Shaft Industrial Waste Carton Shredder , Waste Carton Crusher Machine

  1. The machine can shred various bulk materials, basket materials, pipe, plate, sheet, tire, big roll film, which are difficult to be shredded by single shaft shredder.
  2. The frame is combinational structures, made from precision machined extra-thick sheet, slewing axis is forced, Lange-angle, hexagonal prism, the hopper is large-caliber, and substantial, so good-sized material is practicable.
  3. Revolving knife is designed and processed particular in thickness, shape, arrange order and so on.
  4. PLC control system, forward and reverse operate and stop automatically can protect the machine when the materials is too big and much. Operate safely, low-speed running, low noise, little dust.
  5. The knife is made from special alloy steel, sturdy and durable.





Quick details

1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.



Working Principle

The material will be transferred to the blades assemble Chamber by conveyors,manually from hopper or forklikfe,material is taken up by the barbed blade, pulled unceremoniously into the machine and then shredded between the blades on the two opposing shafts so the material will be tear,extrusion,shear and other integrative action,then the small pieces material will be out from the bottom of the shredder.

Automatic Industrial Cardboard Shredder , Waste Carton Shredder Machine Energy Saving 0

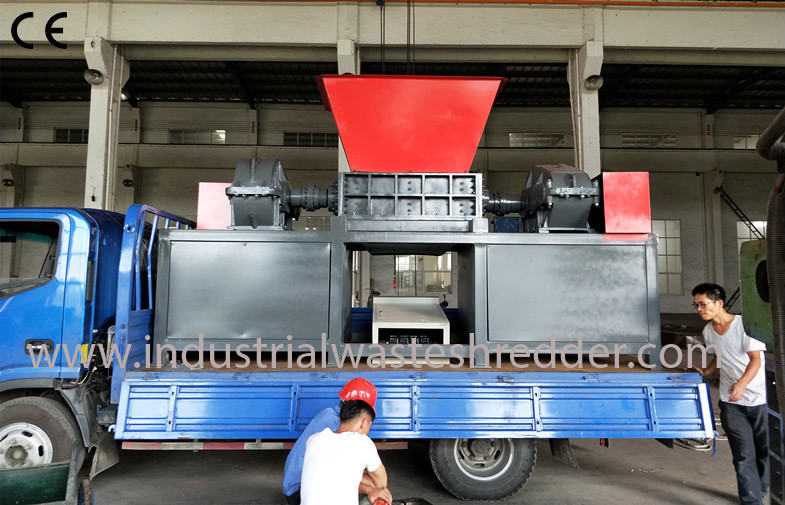

Waste Carton shredder machine photo display

Automatic Industrial Cardboard Shredder , Waste Carton Shredder Machine Energy Saving 1





Typical Application

  • Film,jumbo bags,non-woven&woven bags,pvc bags,packing bags,shopping bags,fishing net,ropes
  • Plastic,pet bottles,papers,books
  • Wood,logs,wood chip,barks
  • Animal fur,plant straw,grass
  • E Scrap



Our Service

24 Hours Online Service.
Inquiry will be replied within 2 hours.
All-the-way tracking service offered from placing order to delivery
Customized design and flow chart are available for our clients.

One year warranty and all-round after-sales service.
Independent R&D team and strict & scientific management system.
