Plastic Film Industrial Waste Shredder Double Shaft Customizable Capacity

Place of Origin CN
Brand Name Joful
Certification CE
Model Number T-400/600/800/1000/1200/1500/2000
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Film , EPE Foam , Export Wooden Box / or per clients request
Delivery Time 7-45 working days
Supply Ability 45 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Plastic Shredder,Plastic Film/bags/Barrel/Bucket/Drum Shredder,Dustbin Shredder Application Plastic Pipe/lump/pallet/lump,Film,Scrap Metal,E Waste,Paper,Cardboard,Carton,Wood,Tire ...
Blade Material 6CrW2Si, 42CrMo, SKD-11, D2 / Customizable Capacity Customizable
Output Size 10-100 Mm Feature Hardened Alloy Steel Knives And Gears , Detachable Knives
Installation Offer Assembly Drawing/video ,support Abroad Installation Voltage 380 V/50 Hz /3 Phase , Customizable
High Light

heavy duty industrial shredder

,

mattress shredding machines

Leave a Message
Product Description

Double Shaft Industrial Waste Shredder For Waste Plastic Film , Plastic Film Crusher​



Introduce of double shaft plastic film shredder


We are manufacturer with more than 15 years design and manufacturing experience on blade & cutters.
The shredder is designed large torque shear equipment in order to break large & hard materials.The equipment is widely used to tear up the bundles of material containing foreign matter or high hardness materials.The modular design of the machine box greatly reduces the cost of maintenance of the main components of the equipment,Save maintenance time,In the large-scale cutting equipment has a great advantage.



The electric part takes advantage of SIEMENS PLC program and touch screen control with video monitor system and the automatic detecting overload protection function. Depends on which type material need to shred & output size demand,we'll recommend one shaft , double shaft or four shaft shredder machine accordingly.



Features


Reducer

Equipped with ribbed high rigid cast iron box.Gear surface and gears are made of high quality alloy steel,The surface is hardened by quenching.Fine processing, smooth transmission, low noise, carrying capacity, long life.Direct reducer to more effectively improve the energy transfer.



Electric control cabinet

Electric control cabinet equipped with Siemens PLC, Schneider Electric components, to achieve double shaft operation automation.Touch screen operation so that the whole machine programming, maintenance and repair becomes convenient,Customers can choose a soft start or VFD drive to start a smooth start.



Removable cutlery

Removable blade design can greatly shorten the blade replacement time.Through the release and locking bolts can easily complete removal and replacement of wear Blade.Broken different materials,Flexible with the corresponding number of claw blades,Can play the best machine shredding effect.





Application


  • Plastic,rubber,PET bottles,HDPE,PE,PP
  • E scrap,WEEE
  • Wood,logs,wood chip,wood furniture
  • Drum/barrel/bucket/dustbin/IBC
  • Bicycles & Motorcycle shell
  • Empty tanks (without liquid materials & painting, etc)
  • Light scrap metal
  • Paper,files,books,cardboard,carton,
  • Tire



Mini model T-1000 (standard model for general reference)


Model T-1000
Motor Power 18.5+18.5 KW ... ( customizable)
Rotor Blade Qty 20 pcs (more pcs also available)
Rotor Blade Thickness 50mm (other thickness also available)
Blade Material Sicr Cris H13 Ld ... (customizable)
Speed 15-24rpm
Rotor Dia 320mm (adjustable)
Chamber Size 1000*500mm (adjustable)
Machine Size / mm 3200*1300*2000 (depends)
Machine Weight 5000 kgs (depends)



Typical Application waste Plastic film shredder


A variety of containers plastic beverage cans, plastic barrels, drums, crates, packaging barrels,PP bottle,PE/pet bottle.
Waste appliances TV, washing machine, refrigerator shell, printer, keyboard, waster Microwave oven,waster computer,waster mouse,Circuit board.
Pipe large pipe, pipe fittings, PE pipe,PVC tube,HDPE/PP pipes
Wood wooden pallets, plastic pallets, forklift pallets,Used furniture
Rubber waster wire, tires tires, truck tires
Scrap metal car shell, aluminum, scrap aluminum, engine shell, Lead plate,waster steel,waster iron
Garbage Food waste,animal carcass, medical waste, garden garbage,Fruit trash,Vegetable trash,glass



Quick details



1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.







How does the machine work ?


Step 1. The material walk into the inner part of the breaking chamber through the feeding system or from hopper directly.

Step 2. The box is loaded with tear blades, and the material is torn apart, extruded, cut and so on.

Step 3. The material is shredded into small pieces and discharged from the bottom part of the box.

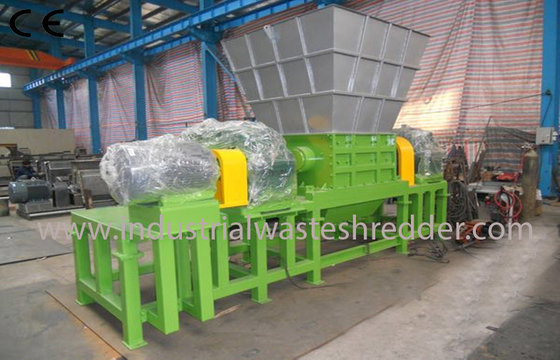

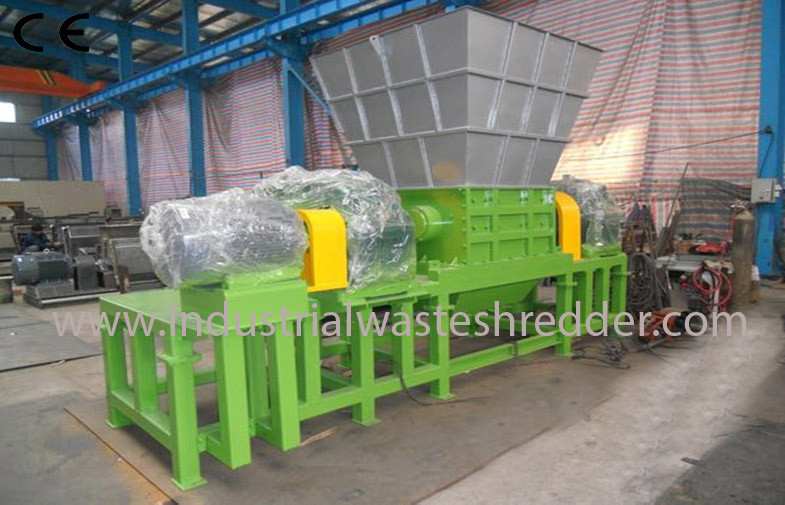

Plastic Film Industrial Waste Shredder Double Shaft Customizable Capacity 0







Service


After-Sales Service

  • Training how to instal the machine, training how to use the machine.Also offer assembly drawing or video
  • Engineers available to service machinery overseas.
  • life long time in time after sale service ( we response any question from old clients more faster than new clients)
  • Any spare parts or wearing parts, you can get from us in cost price.
