High Strength Heavy Duty Plastic Shredder , HDPE Plastic Scrap Shredder

Place of Origin CN
Brand Name Joful
Certification CE
Model Number T-400/600/800/1000/1200/1500/2000 ...
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Film , EPE Foam , Export Wooden Box / or per clients request
Delivery Time 7-45 working days
Supply Ability 40 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Plastic Shredder,HDPE/PE/PET Shredder,Plastic Crusher Machine Application Plastic,HDPE,PET/PP/PE,Wood,Tire,Film,Paper,Carton,Scrap Metal
Blade Material SKD-11, D2, DC53, LD, Cr12MoV / Customizable Capacity Customizable
Output Size 10-100 Mm Motor Customizable Base On Shred Demand
Installation Offer Assembly Drawing/video ,support Abroad Installation Voltage 380 V/50 Hz /3 Phase , Customizable
High Light

industrial shredder machine

,

mattress shredding machines

Leave a Message
Product Description



Double Shaft Industrial Waste Shredder For Plastic Waste , Scrap HDPE Plastic Shredder





Description of double Shaft Industrial Waste Shredder For Plastic Waste , Scrap HDPE Plastic Shredder


Joful  industrial double shaft waste plastic shredder machine with very mature technology for we have more than 15 years design and manufacturing experience on blade & cutters. We have advantages in standardization and modularization design, high interchangeability for their components. The blades are made of special alloy steel with high strength, strong anti-wear and reparabilityThe electric part takes advantage of SIEMENS PLC program and touch screen control with video monitor system and the automatic detecting overload protection function. They have low rotation speed, big torque and low noise characters.

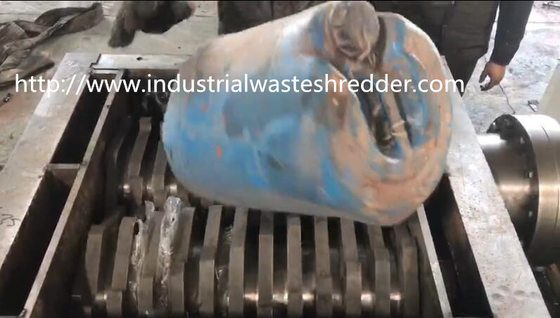

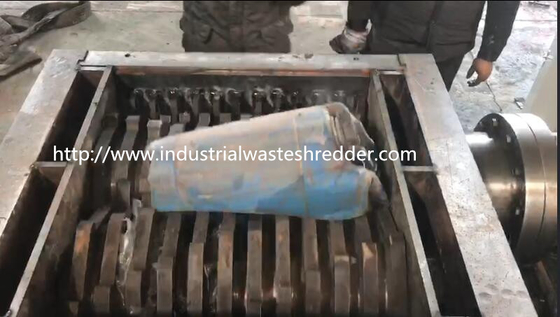

Work Principle


1. The material enters the inner part of the shredded box through the feeding system.

2. The box is loaded with tear blades, and the material is torn apart, extruded, cut and so on.

3. The material is shredded into small pieces and discharged from the bottom part of the box.



High Strength Heavy Duty Plastic Shredder , HDPE Plastic Scrap Shredder 0





Features


  • The tear blades use high quality material, life period is long.
  • The tear blades speed is low, the noise is small, and the energy consumption is low.
  • Very efficient, labor cost saving, low input and high output.
  • Easy to operate and maintain ,you don't need to install.
  • Run soundly and consistently, can work for a long time non-stop .



Application


  • Plastic & rubber
  • Tin plate material
  • Wood,logs,wood chip
  • Iron drum
  • Waste electrical appliance
  • Bicycles & Motorcycle shell similar materials
  • Empty tanks (without liquid materials & painting, etc)
  • scrap metal





Quick details


1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.





Service


Pre-Sale Service

  • Offer consultation service&suggestion
  • Sample testing support.
  • Support View our Factory (offer invitation letter,hotel recommandation&flight suggestion,pick up service)

After-Sale Service

  • Training how to install the machine, training how to use the machine.Also offer assembly drawing or video
  • Engineers available to service machinery overseas.
  • life long time in time after sale service ( we response any question from old clients more faster than new clients)
  • Any spare parts or wearing parts, you can get from us in cost price.





Mini model T-600 (standard model for general reference)


Model JFMT-600
Motor Power  7.5+7.5 KW ... ( customizable)
Rotor Blade Qty 20 pcs (more pcs also available)
Rotor Blade Thickness 30mm (other thickness also available)
Blade Material Sicr Cris H13 Ld ... (customizable)
Speed 15-30rpm
Rotor Dia 285mm (adjustable)
Chamber Size 600*430mm (adjustable)
Machine Size / mm 2800*1300*1850 (depends)
Machine Weight 2300 kgs (depends)
