Safe Fabric / Textile Crushing Machine , Heavy Duty Industrial Shredder
| Place of Origin | CN |
|---|---|
| Brand Name | Joful |
| Certification | CE |
| Model Number | F-800/1200/1600/2400/3200 ... |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging Details | PVC film packing / Steel frame&export carton box / per clients' request |
| Delivery Time | 7-25 working days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 50 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Foam Scrap Shredder,Foam Crusher,PU / EPS / EPE Foam Crusher | Application | All Foams,textile Scrap,waste Clothes,fabrics,fiber,film ... |
|---|---|---|---|
| Main Machine Size | 2100*1000*1100 Mm | Moving Knife Wheel | Φ300*400 L Mm |
| Reducer Model | 100# | Power | 8 P / 5.5 Kw + 4 P / 1.5 Kw |
| Output Size | 100-200 Kg/h | Reducer Speed Ratio | 20:1 / 31:1 |
| High Light | industrial shredder machine,mattress shredding machines |
||
Product Description
F-800 Industrial Waste PU Foam Shredder , Sponge Foam Crusher , EPS Foam Crusher ,Old Clothes Crusher , Textile Scraps Crusher
Description
Compare with the J series shredder / crusher machine, the advantage of the F series machine is they can crusher materials to more smaller size (several millimeters in size). So if you want to shred soft materials or semi-rigid materials,which series machine to choose depends on the final output size you want and what's your capacity per hour. To save your time, you can contact us and tell us your detailed crush demand then we recommend you most suitable machine and offer machine price and details
Different from the traditional reciprocation straight knife board,the F series crusher machine adopts new technology - use rotating twisted knives design, adopt international leading oblique knob scroll meet the shear design of point moving knife and fixed knife,continuous high-speed shear so as to achieve the final crushing demand.
Advantage
Compared with the traditional funnel type sponge machine, Joful Textile shredder / crusher machine adopts conveyor belt feeding mode, which is more uniform and safe. The size of the particle size can be adjusted by changing the mesh screen.
Feed the blower to prevent the feeding of the plug. The circuit is protected by thermal overload, even if the machine is jammed which is not burn the motor.
The process of machine working
| a. The materials feed in via input belt or feeding hopper |
| b. moving knives rotating in very high speed and with same cutting principle as the shear the moving knife and stationary knives working together to achieve the cutting purpose. |
| c. The crushed materials come out from the screen, we customize hole size of screen base on clients' crushing demand,if the materials large than the needed size,it'll back to cutting room & repeatedly chopping until it reduce to the needed size. |
Technical Data
| Model | 1200F model |
| cutting motor | 8P11kw |
| transport motor | 4P2.2kw Inverter motor |
| reducer model | 120# |
| reducer speed ratio | 55:1 |
| pulley wheel of cutting motor | Φ160 |
| Moving knife wheel | Φ400*600 |
| power distribution cabinet | Independent cabinet |
| Input belt | 3000*520mm |
| output belt | 3.0 kw fan |
| moving knife | Alloy tool steel,6 pieces knife |
| Stationary knife | Alloy tool steel,2 pieces knife |
| main machine size | 1400*1450*1500 |
| cutting size | adjustable |
| output | 400-800kg/h |
Application
| Composite PU foam / Mattress foam,EPS foam / XPS foam,Rock wool foam,glass wool foam,EPE foam ... |
| Textile scraps - Clothes ,like underwear scrap,jeans,towel,cap scraps,non-woven fabrics,all quilting edges,threads.. .. |
| Fibers - glass fiber, fiber yarn,Hemp fiber,Coconut fiber,Polypropylene fiber ,Silk fiber .. |
| Leather |
| Carpets ,Rugs |
| Waste Paper ( book,file,newspaper,magazine..),carton |
| Cellulose |
| Old clothing (Underwear scrap,jeans,towel,cap scraps,non-woven fabrics,cotton fabrics ..) |
| Straw,grass ,barks,leaves .. |
Quick details
1. Lead time - 7-35 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.(other payment term is also negotiable
3. Machine Installation - We have engineer team support abroad installation. For simple model we offer drawing/assembly videos for installation.
4. Warranty - Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.
Cutting Samples Display (final size several millimeters )

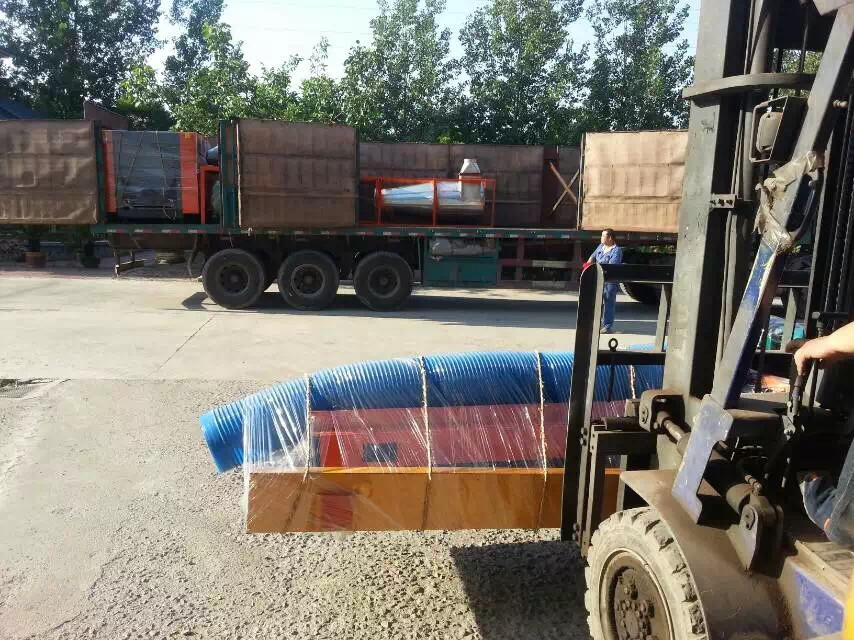

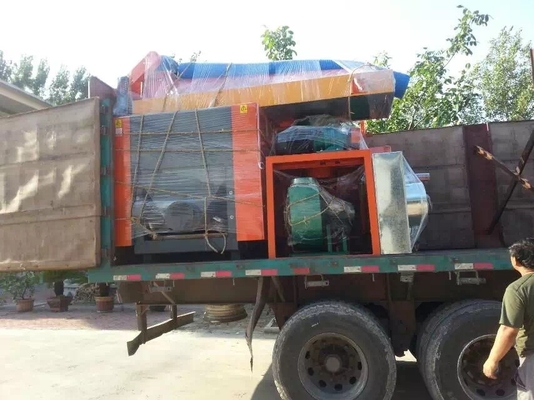

Machine loading photos
FAQ
Q. Can we see & test running machine with samples before buy ?
A. Sure, we welcome clients to visit our factory,and we have machines in workshop for making different cutting tests
Q. What's the price?
A. We have to learn below information before making quotation
- Which material you need to crush ?
- What's your capacity demand per hour ?
- What's the final size request ?
