PU Foam Crushing Industrial Waste Shredder Machine 100 - 200kg / H Output

  • PU Foam Crushing Industrial Waste Shredder Machine 100 - 200kg / H Output
  • PU Foam Crushing Industrial Waste Shredder Machine 100 - 200kg / H Output
Place of Origin CN
Brand Name Joful
Certification CE
Model Number F-800/1200/1600/2400/3200 ...
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details PVC film packing / Steel frame&export carton box / per clients' request
Delivery Time 7-25 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 50 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Foam Scrap Shredder,Foam Crusher,PU / EPS / EPE Foam Crusher Application All Foams,textile Scrap,waste Clothes,fabrics,fiber,film ...
Main Machine Size 2100*1000*1100 Mm Moving Knife Wheel Φ300*400 L Mm
Reducer Model 100# Power 8 P / 5.5 Kw + 4 P / 1.5 Kw
Output Size 100-200 Kg/h Reducer Speed Ratio 20:1 / 31:1
High Light

industrial shredder machine

,

mattress shredding machines
Leave a Message
Product Description



F-800 Industrial Waste Shredder For Scrap PU Foam , EPS Foam Crusher Machine , Sponge Foam Crusher , EPS Foam Crusher ,Old Clothes Crusher , Textile Scraps Crusher





Description of sponge foam crusher machine

Different from the traditional reciprocation straight knife board,the F-800 adopts new technology - use rotating twisted knives design, adopt international leading oblique knob scroll meet the shear design of point moving knife and fixed knife,continuous high-speed shear so as to achieve the final crushing demand.



Compare with the J series shredder / crusher machine, the advantage of the F series machine is they can crusher materials to more smaller size (several millimeters in size). So if you want to shred soft materials or semi-rigid materials,which series machine to choose depends on the final output size you want.



Features



  • Very economic cost, low energy consumption and noise
  • The particles can be adjusted by changing the screen hole
  • Long service life
  • High efficiency
  • Easy to operation

Technical Data



Model 800F model
cutting motor 8P5.5kw
transport motor 4P 1.5kw
reducer model 100#
reducer speed ratio 55:1
pulley wheel of cutting motor Φ140
Moving knife wheel Φ300*400
power distribution cabinet power distribution cabinet
Input belt 1400*330mm
output belt 2.2kw fan
moving knife Alloy tool steel,8 pieces knife
Stationary knife Alloy tool steel,2 pieces knife
main machine size 2100*1000*1100
cutting size adjustable
output 100-200kg/h





Application

Composite PU foam / Mattress foam,EPS foam / XPS foam,Rock wool foam,glass wool foam,EPE foam ...
Textile scraps - Clothes ,like underwear scrap,jeans,towel,cap scraps,non-woven fabrics,all quilting edges,threads.. ..
Fibers - glass fiber, fiber yarn,Hemp fiber,Coconut fiber,Polypropylene fiber ,Silk fiber ..
Leather
Carpets ,Rugs
Waste Paper ( book,file,newspaper,magazine..),carton
Cellulose
Old clothing (Underwear scrap,jeans,towel,cap scraps,non-woven fabrics,cotton fabrics ..)
Straw,grass ,barks,leaves ..





PU Foam Crushing Industrial Waste Shredder Machine 100 - 200kg / H Output 0





Quick details


1. Lead time - 7-35 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.(other payment term is also negotiable
3. Machine Installation - We have engineer team support abroad installation. For simple model we offer drawing/assembly videos for installation.

4. Warranty - Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.





The process of machine working



a. The materials feed in via input belt or feeding hopper
b. moving knives rotating in very high speed and with same cutting principle as the shear the moving knife and stationary knives working together to achieve the cutting purpose.
c. The crushed materials come out from the screen, we customize hole size of screen base on clients' crushing demand,if the materials large than the needed size,it'll back to cutting room & repeatedly chopping until it reduce to the needed size.

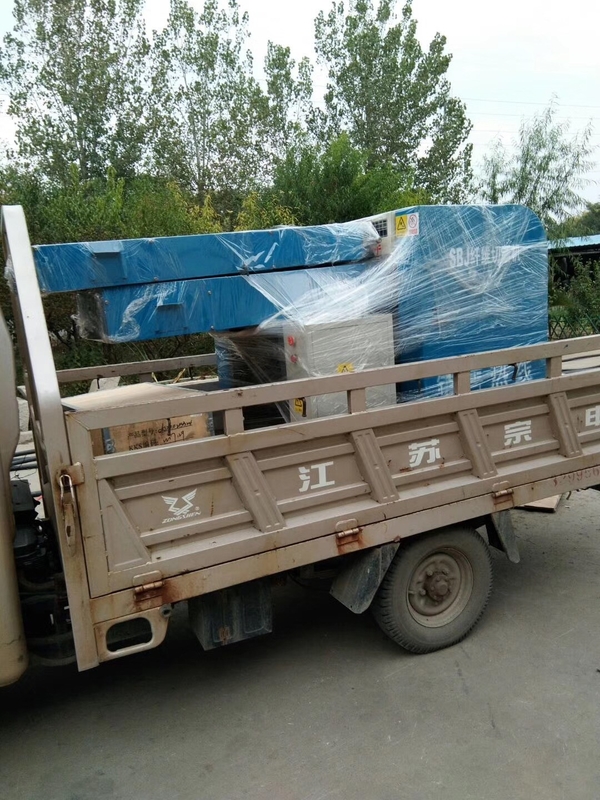

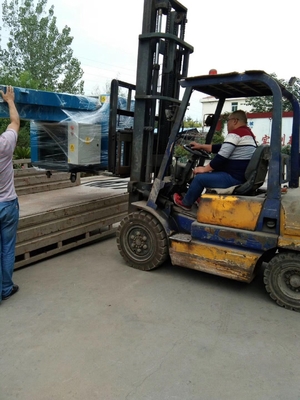

Machine loading photos



PU Foam Crushing Industrial Waste Shredder Machine 100 - 200kg / H Output 1





FAQ

Q. Can we see & test running machine with samples before buy ?

A. Sure, we welcome clients to visit our factory,and we have machines in workshop for making different cutting tests



Q. What's the price?

A. We have to learn below information before making quotation

  • Which material you need to crush ?
  • What's your capacity demand per hour ?
  • What's the final size request ?
