Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size

China Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size supplier
Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size supplier Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size supplier

Large Image :  Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size

Product Details:

Place of Origin: CN
Brand Name: Joful
Certification: CE
Model Number: J-500 / 800 / 1200 / 1600 / 2400 / 3200...

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: PVC film packing / export wooden box packing / per clients' request
Delivery Time: 7-38 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Blade Material: Alloy Tool Steel Color: Blue,orange,yellow,grey,customizable
Main Machine Size: 1550*1700*1550 Mm Product Name: Waste Carpet Shredder,shredding Waste Carpet,carpet Crushing Machine,scrap Carpet Crushing Machine
Application: Foams,Cotton,Textile Scraps,waste Carpets,rugs,clothes,fabrics,fiber,paper,diaper ... Power: 8 P / 11 Kw + 4 P / 2.2 Kw
Output Size: Adjustable Reducer Speed Ratio: 20/31:1



J-2400B Industrial Waste Carpet Shredder , Scrap Carpet Crusher , Rugs Crusher , Clothes shredder 3000-5000 kg/hr





Description of scrap carpet crusher , rugs crusher


Welcome to visit Joful website, we are manufacturer with in house design team , engineer team,production workshops, installation team ,sample machines room for test machine running before buy and after-sale team guarantee that every machine you buy without worries.

If you have any agent or friend in China,you also can ask them to visit us , or you can send materials to us we make the cutting test and take the video for your reference. If the material is easy to get from China market,we can search materials ourselves and make the cutting test for you.  In a word, anything we can do to save you cost/time and make you more relieve, we will support you to do.





Application


  • Composite PU foam / Mattress foam,EPS foam / XPS foam,Rock wool foam,glass wool foam,EPE foam ...
  • Textile scraps - Clothes ,like underwear scrap,jeans,towel,cap scraps,non-woven fabrics,cotton fabrics ..
  • Fibers - glass fiber, fiber yarn,Hemp fiber,Coconut fiber,Polypropylene fiber ,Silk fiber ..
  • Leather
  • Carpets ,Rugs
  • Waste Paper ( book,file,newspaper,magazine..)
  • Cartons , cotton fabric
  • Animal fur
  • Straw,grass ,barks,leaves ..



Main Technical Data


Model 2400B
cutting motor 8P 11kw 2 sets
transport motor 4P 4.0kw Inverter motor
reducer model 135#
reducer speed ratio 20:1/31:1
pulley wheel of cutting motor Φ140
Moving knife wheel Φ600*1200 L
power distribution cabinet Independent cabinet
Input belt 3000*1100mm
output belt 3000*1100mm
moving knife Alloy tool steel,4 pieces knife
fix knife Alloy tool steel,2 pieces knife
main machine size 2100*1900*1550
cutting size adjustable
output 3000-5000kg/h






Waste carpet Cutting Samples Display


Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size

Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size





The working principle of the J-2400B Industrial Waste Carpet Shredder


It's adopt rotating twisted knives design.It's totally different from the traditional reciprocation straight knife board. It adopts the application of international leading oblique knob scroll meet the shear design of point moving knife and fixed knife,continuous high-speed shear.(refer to photo below)



Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size

  • a. The materials feed in via input belt or feeding hopper
  • b.  moving knives rotating in very high speed and with same cutting principle as the shear the moving knife and stationary knives working together to achieve the cutting purpose.
    • c. The crushed materials come out from the screen, we customize hole size of screen base on clients' crushing demand,if the materials large than the needed size,it'll back to cutting room & repeatedly chopping until it reduce to the needed size.Then it'll drop out from the screen to receipt bag or out belt. For very small and light materials, we use fan device to adsorb the final materials & adopt dust-collect device.In a word, we use different design and configuration for meeting each crushing demand,one standard model can not fit all demand.



Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size









Quick details


1. Lead time - 7-35 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.(other payment term is also negotiable
3. Machine Installation - We have engineer team support abroad installation. For simple model we offer drawing/assembly videos for installation.

4. Warranty  - Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.

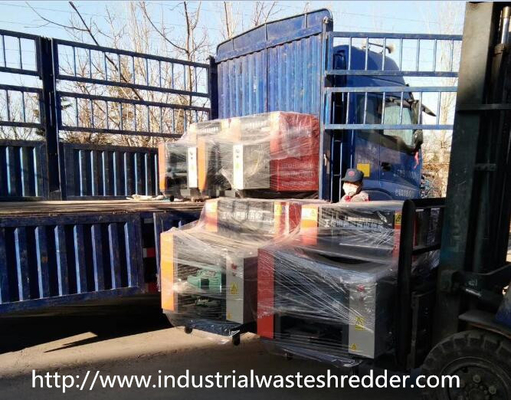

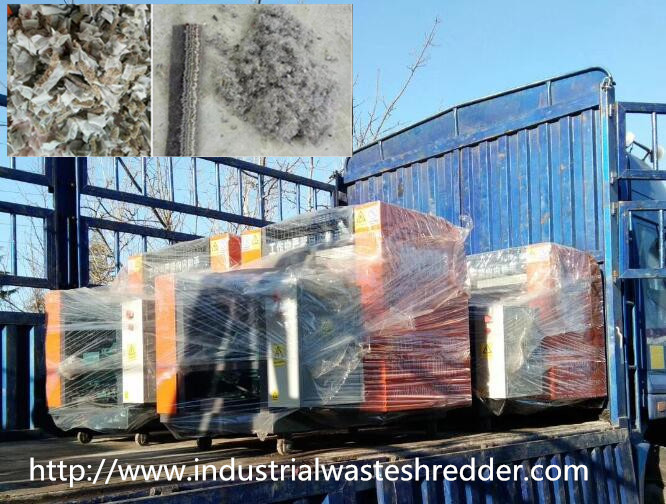

Machine loading photos


Scrap Carpet Industrial Shredder Machine 3000 - 5000kg / H Adjustable Cutting Size





FAQ


Q. Can we see & test running machine with samples before buy ?

A. Sure, we welcome clients to visit our factory,and we have machines in workshop for making different cutting tests



Q. How Much ?

A. Depends on

  • Which material you need to crush ?
  • capacity demand per hour ?
  • final size request ?
