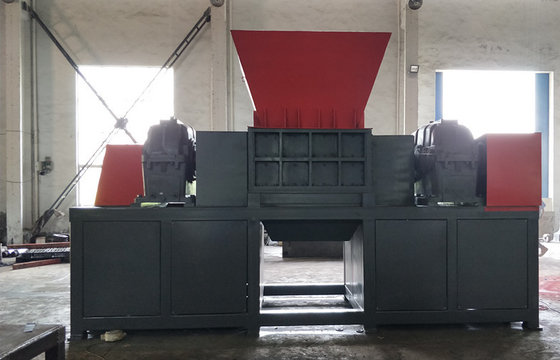

Chemical Drums Shredder Machine PLC Control With Rugged Rotor Blade Cutting System

China Chemical Drums Shredder Machine PLC Control With Rugged Rotor Blade Cutting System supplier
Chemical Drums Shredder Machine PLC Control With Rugged Rotor Blade Cutting System supplier Chemical Drums Shredder Machine PLC Control With Rugged Rotor Blade Cutting System supplier

Large Image :  Chemical Drums Shredder Machine PLC Control With Rugged Rotor Blade Cutting System

Product Details:

Place of Origin: CN
Brand Name: Joful
Certification: CE
Model Number: S-600/700/800/1000 / T-400/600/800/1000/1200/1500/2000 ..

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Film , EPE Foam , Export Wooden Box ,or per cients' requirement
Delivery Time: 48 Working Days
Supply Ability: 15-35 sets per month
Contact Now
Detailed Product Description
Product Name: Scrap Chemical Drums Shredder,Chemical Drums Shredding Machine,plastic Drum Shredder,HDPE Drum Shredding Machine,PET Drum Shredder Feature: 100% QC Inspection Before Delivery
Blade: 42CrMo, SKD-11, D2, DC53, LD, Cr12MoV / Customizable Suitable Material: Light Metal,plastic,wood,tire,film,paper,carton ...
Power: 30*2 Kw / Various Voltage: Customizeable
Warranty: 12 Months Capacity: Customizeable



Industrial Waste Chemical Drums Shredder Machine , Chemical Drum Shredder Machine For Sale







We primarily focus on Shredding Projects to reduce the volume of waste materials and / or to extract recyclates, having our own in-house design team enables us to offer bespoke solutions to meet your individual requirements across many disciplines. For large size shredder we adopt blade with detachable knives,which lower the cost for future long time use ,much more convenient. The material is taken up by the barbed blade, pulled unceremoniously into the machine and then shredded between the blades on the two opposing shafts.





Features of Chemical Drum Shredder
1. The machine is suitable to process very big size of plastic material, such as big jar, gallon barrel, bucket, basket plastic board and and complete set of household appliances and other pe pp pet big bottle and wood and tire and pressing plastic film

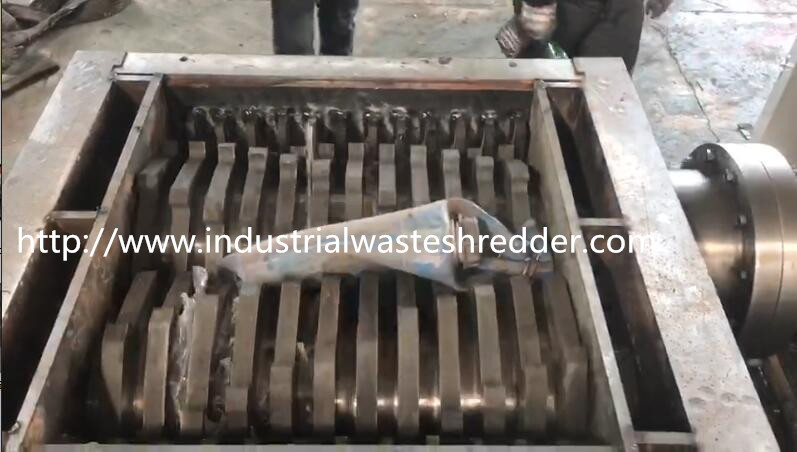

2. Rugged rotor blade cutting system
3. Bulkhead seals to protect the shaft bearing
4. The machine is control by PLC system,the blade can rotated in opposite direction ,and it also can close automatic if something unexpected happen , with very high safety service
5. Low speed,low noise low dusty ,high torque

6. Their assistant blades are refined by forging and milling process and their main blades are made of special alloy steel with high strength and strong anti-wear.

Chemical Drums Shredder Machine PLC Control With Rugged Rotor Blade Cutting System







Quick details


1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Installation - Whole set machine delivery out,no need abroad installation. If necessary,can support abroad installation also or offer assembly video
4. Warranty - 12 months (account from the day client receive the machine). If there's non-human damage but the machine has quality problem,we will offer the spare part for free,and if complicated problem we can send engineer to there to fix ,all costs are undertake by factory side





Standard Models for general reference


Model JFMT-400 JFMT-600 JFMT-800 JFMT-1000 JFMT-1200 JFMT-1500
Motor Power 3+3KW 7.5+7.5 KW 15+15 KW 18.5+18.5 KW 30+30KW 55+55 KW
Rotor Blade Qty 20 pcs 20 pcs 20 pcs 20 pcs 24 pcs 30 pcs
Rotor Blade Thickness 20mm 30mm 40mm 50mm 50mm 50mm
Blade Material Sicr Cris H13 Ld ... Sicr Cris H13 Ld ... Sicr Cris H13 Ld ... Sicr Cris H13 Ld ... Sicr Cris H13 Ld ... Sicr Cris H13 Ld ...
Speed 15-30rpm 15-30rpm 15-24rpm 15-24rpm 15-24rpm 15-24rpm
Rotor Dia 200mm 285mm 285mm 320mm 380mm 480mm
Chamber Size 400*250mm 600*430mm 800*430mm 1000*500mm 1000*580mm 1000*740mm
Machine Size / mm 1200*1300*1400 2800*1300*1850 3200*1300*1950 3200*1300*2000 4000*1400*2200 4500*1500*2400
Machine Weight 1100 kgs 2300 kgs 3300 kgs 5000 kgs 6800 kgs 10000 kg

(We customize each model per clients' shredding demand , One size shredder does not fit all application !)





FAQ


Q. Are you trading company or manufacturer ?

A. We are factory.



Q. How long is your delivery time?

A. Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q. What is your terms of payment ?

A. Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us for more details



Q. What's the  price of the shredder machine ?
A. It depends on

  •  Which Material need to shred ?
  •  What's the output demand per hr ?
  •  What's the output size request ?



Q. How do I get replacement parts for my shredder?

A. Service is so important to us. Our relationship with you doesn’t end when you buy a machine—instead our service team works efficiently to make sure you have everything you need to maintain your shredder. Just give us a call or send us an email , We response every old clients more fast than all new clients !
